Video-based Person Re-identification Based on Distributed Cloud Computing

A.SUPERVISED RE-ID

Supervised person Re-ID refers to the use of labeled pedestrian data sets for training and testing [15]. Existing supervised methods have achieved high accuracy in Re-ID task. Representation learning and metric learning are the most commonly used methods in supervised Re-ID. Representation learning mainly includes the appearance features of pedestrians and the features of latent semantic components (head, front, and back). For the learning of appearance features, for example, Sun et al. [16] proposed a local-based convolutional baseline network, which divides the input pedestrian image into six parts through a partition strategy, and then obtains six local features through deep convolution vector. Finally, the six feature vectors are connected with a fully connected layer to predict pedestrian ID. At the same time, the author considers that when the image is partitioned, different semantic information may appear because of the misalignment. Therefore, a local refinement pool is proposed, and a penalty mechanism is used to correct the deviation from the correct partition. For the potential semantic components, Su et al. [17] proposed the idea of using the key points of pedestrian poses to segment the image and weight the different body blocks to enhance the detailed features. This method first uses the pose estimation algorithm to obtain the position of the joint points of the human body, then uses the joint points to locate the images of different human body parts, and then embeds the body part image input Feature Embedding SubNet to obtain the normalized body part features. Then, the complete pedestrian image and the normalized body parts image are sent to the convolutional neural network (CNN) network together to obtain global features and local features. Finally, the body features are weighted by Weighting SubNets, and then fed into Softmax loss jointly with the global features. Inspired by the posture guidance mechanism, Zhu et al. [18] introduced a human posture migration algorithm. Given a condition image, the author used a pose estimation algorithm to extract the existing pose and target pose in the picture. Then, the proposed progressive gesture attention transfer model is used to generate pedestrian images including target pose, so as to achieve the purpose of enlarging the sample. One of the above two methods focuses on learning the correspondence between the color and texture distribution of different person images but ignores the correspondence between semantic components. The other emphasizes the semantic component learning and ignores the corresponding color texture. Therefore, Mao et al. [19] proposed a network called Multi-Channel deep convolutional Pyramid Person Matching Network (MC-PPMN). It learns the corresponding representation from the semantic components and color texture distribution. The proposed framework uses a pyramid matching module of hollow convolution to solve the alignment problem. To establish the correspondence between color texture distributions, deep color texture distribution representation learning based on convolutional neural networks is introduced. Two pyramid matching modules are used to learn the relationship between the color texture distribution and semantic components of the picture, and output the corresponding representation. Finally, the two fully connected layers are used to fuse the corresponding representation, and softmax is used to predict the probability that the image pair is the same person. Different from representation learning, metric learning aims to learn the similarity of two pictures through the network. On the issue of Re-ID, it is specifically explained that the similarity of different pictures of the same pedestrian is greater than that of different pictures of different pedestrians. Finally, the loss function of the network makes the distance of the same pedestrian pictures as small as possible, and the distance of different pedestrian pictures as large as possible. Commonly used metric learning loss methods include contrastive loss [20], triplet loss [21]–[23], quadruplet loss [24], triplet hard loss with batch hard mining (TriHard loss), and margin sample mining loss.

In general, supervised person Re-ID is mainly divided into representation learning and metric learning. The effect of supervised methods can be improved by adding attention mechanism or using GAN method to expand the data set. However, when supervised model is applied to other data sets, the performance tends to be greatly reduced, and it is unrealistic to label the data in large data sets in the real environment.

B.UNSUPERVISED RE-ID

To improve the effectiveness of the Re-ID algorithm on large-scale unlabeled data sets, some unsupervised Re-ID methods were proposed [25]–[29] to learn cross-view identity specific information from unlabeled data sets. However, due to the lack of information about identity labels, the performance of these unsupervised methods is usually much weaker compared with supervised methods. Yu et al. [29] to solve the problem of lack of pairwise label guidance in unsupervised Re-ID, compare unlabeled pedestrians with reference pedestrians in the auxiliary domain to learn a soft multilabel. The idea is to compare each unlabeled pedestrian image with a labeled reference image to obtain a soft multilabel for the unlabeled image. In addition, the author proposed soft-multilabel-guided hard negative mining that learns discriminative feature embedding for the unlabel target domain pairs through the consistency of the visual features of the unlabel target domain pairs and the soft multilabel. That is, using soft multilabel to distinguish visually similar but different unlabeled persons. Lin et al. [30] proposed a bottom-up clustering framework that maximizes the diversity of different pedestrians while maintaining the similarity between pedestrians of the same identity. The author used repelled loss to directly optimize the cosine distance between samples or clusters to optimize models without labels can maximize the diversity between different classes and maximize the similarity of each cluster or sample. So that diversity normalization can balance the number of clusters in each cluster, making the clustering result closer to the true distribution. UMDL [31] uses the dictionary-learning mechanism to transfer the invariant representation of the human appearance from the source-labeled data set to the unlabeled target data sets and obtain better performance. An image style migration algorithm was proposed [32], which transfers the source domain image to the target domain style in an unsupervised manner, uses SPGAN to improve performance, and keeps the ID information unchanged during the migration process. The algorithm is mainly divided into two steps. In the first step, the generator function G(*) learned by Cycle GAN is used to transfer the source domain image S to the target domain T style, and the G(S) training set is obtained. In the second step, the obtained G(S) is an image with the target domain imaging style, and the ID is consistent with the source domain, so the converted image can be used together for supervised Re-ID feature learning.

The above unsupervised Re-ID algorithm can be summarized into two ideas. One is to convert the image in the source domain to an image in the target domain style, and to transfer the image style of the pedestrian, so as to improve the recognition accuracy. The other is to use the idea of unsupervised clustering, using pseudo-tags to maximize the similarity between pedestrians of the same identity, and maximize the difference between different classes. However, there is still a large gap in accuracy between the above unsupervised algorithm and the supervised algorithm.

C.VIDEO-BASED PERSON RE-ID

In addition to image-based Re-ID methods, video-based Re-ID methods have also received more and more attention. For the first time, deep learning is used to solve the video-based Re-ID task [33]. The author proposed a new recurrent neural network architecture that uses the Siamese Network and combines a recursive and appearance data time pool to learn the feature representation of each pedestrian in the video sequence. Because the available video sequences are noisy, that is, with arbitrary sequence duration and start/end frames, each image sequence has unknown camera viewpoint changes and may have incomplete frames due to occlusion. Wang et al. [34] proposed a model that can automatically select more discriminative video clips. The model is formulated using a multiinstance ranking strategy for extracting more reliable spatiotemporal features from nonoverlapping cameras and learning cross-view matching through ranking. At the same time, the author introduced a new image sequence-based human Re-ID data set, called iLIDS-VID, which is extracted from the i-LIDS multicamera tracking scene. To extract more spatio-temporal information to solve occlusion and complex background interference, You et al. [35] used the HOG3D descriptor to extract spatio-temporal information in the video. The HOG3D features include spatial gradient information and temporal dynamic information. For the extraction of appearance features, color histograms and local binary pattern (LBP) features are used. To obtain stable feature information, the author performed average pooling on the color histograms and LBP features of individual pedestrians in the video. And proposed top-push distance learning distance metric learning method, like many methods in recent years, is also based on Mahalanobis distance learning. This metric learning can increase the difference between interclasses and reduce the difference between intraclasses to improve matching accuracy. In recent years, some other methods [36]–[39] have been proposed to predict the quality score of local video frames. Liu et al. [36] proposed a simple network, that is, it adding a branch of quality score to the usual recognition network, and aggregating the multiframe information in the video into an optimal feature, which simplifies the complexity of the video recognition process. Due to the low resolution of most sequence images, the key points of human body are usually not accurate enough. By calculating the distribution of key points of the entire data set, a fixed three local regions are obtained, and then the three regions are scored, and finally the features and scores are fused by the set aggregation unit to obtain the final features [37]. To effectively extract useful information in all frames. The network introduced in [38] learns multiple spatial partial attention models and uses a diversity regularization term to ensure that multiple partial attention models focus on different parts of the body. In practical applications, each pedestrian is a sequence under the camera, and the video-based pedestrian re-recognition method can extract more abundant spatial and temporal information.

Different from the above methods, this paper aims to improve the representation of video sequences by mining spatio-temporal information in low- and high-level features. Therefore, we introduce the nonlocal attention mechanism into the CNN network to obtain a long-term representation. The nonlocal attention mechanism incorporates global sequence information into local features to enrich local features. By introducing the nonlocal attention mechanism into different feature levels to explore the sequence space and time diversity, and then change its feature representation.

A.DISTRIBUTED DATA STORAGE

The video-based Re-ID network has excellent performance in Re-ID accuracy because it can fully excavate pedestrian’s spatio-temporal information. However, in a real environment, the high amount of data and calculations it brings will cause a long training time and consume a lot of computer resources. The two cores of cloud computing are distributed storage and distributed computing. Faced with the need for batch processing of massive pedestrian video data, we use distributed storage to store pedestrian data and client access information in nodes in the cloud.

We cut the input pedestrian data set into different small blocks and store them on different machine nodes, so that we can break through the upper limit of the storage capacity of a single machine. Cloud nodes are divided into master nodes and slave nodes. The master node is also called the name node, which is equivalent to the data directory and is responsible for the metadata storage of the entire storage system. The slave node is the data node, which is responsible for storing data. When a new data node is added to the cloud cluster, the data node will directly report to the name node, which data blocks are saved in its own node. As the name node of the housekeeper node, it will automatically construct a list to record the distribution of data blocks.

B.DISTRIBUTED RE-ID MODEL

The performance of Re-ID tasks increases linearly with the magnitude of training data. However, when training large-scale pedestrian data and large neural networks, the situation of out of memory is unavoidable. Moreover, for the large-scale datasets such as video-based pedestrian datasets, training the network can even take several days.

Experimenters need to constantly try, adjust the model, and change the results. This training speed is unacceptable. Therefore, we need to use distributed training to improve the speed of training. We first recognize two distributed training methods, model parallelism and data parallelism, as shown in Fig. 3.

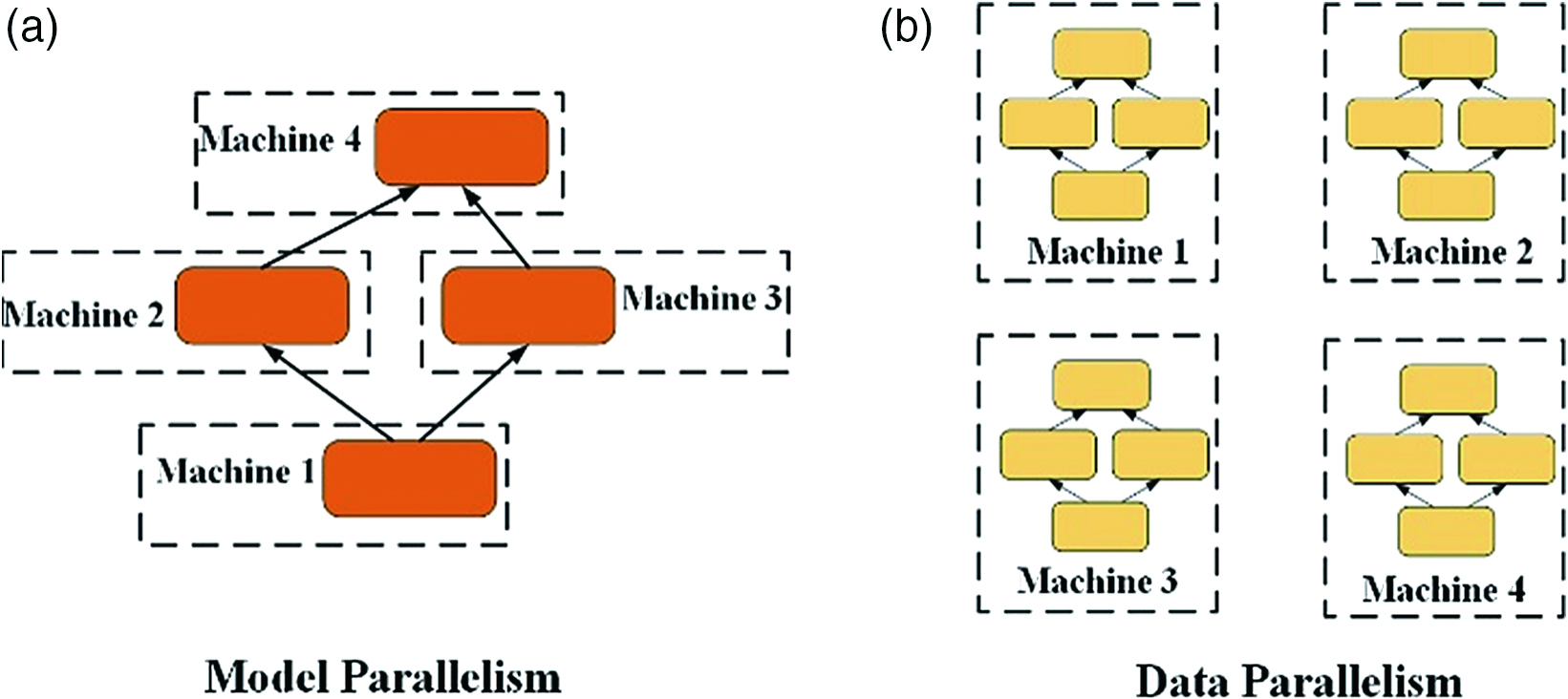

Fig. 3. Two types of distributed training modes.

In model parallelism, different machines in a distributed system are responsible for computing different parts of a single network. In data parallelism, different machines have complete copies of the model, each machine is just a different part of the data, and the results of each machine are combined in some way.

Due to the strong nonlinearity of neural networks, the dependence between parameters is much more serious than that of linear models. It cannot be divided simply, and it is impossible to use a technique like linear models to achieve efficient model parallelism through a global intermediate variable. But things always have two sides, and the hierarchical neural network also brings certain convenience to the model parallelism. The network level of Re-ID is deep. A natural and easy-to-implement model parallel method is that the entire neural network is horizontally divided into K parts, and each working node undertakes one or more layers of computing tasks. The specific implementation algorithm is shown in Alg. 1. We divide the network into layers according to functions. The result of the division is shown in the figure: it is divided into a random sampling layer of the video sequence, a ResNet50 backbone network with nonlocal attention modules, and feature pooling layer. Besides, we divide the ResNet50 backbone network module with the local attention module again, considering the number of nodes of each layer, and balance the computation of each working node as much as possible.Algorithm 1. Model parallel algorithm.

A.EXPERIMENTAL SETUP

B.OVERALL PERFORMANCE AND COMPARISON RESULTS
