Structure-Aware Hierarchical SHA-256 Hashing for DICOM Integrity Verification: A Comparative Evaluation

A.CRYPTOGRAPHIC HASH FUNCTION ENHANCEMENTS

Cryptographic hash functions are widely used for data integrity verification because they generate deterministic fixed-length outputs that change substantially when input data are modified. In DICOM-based medical imaging systems, these functions are commonly used to verify whether stored or transmitted files remain unchanged. SHA-256 remains a common reference algorithm, while SHA-3 provides a modern cryptographic alternative with a different internal construction. However, both operate on input data as byte streams and do not explicitly distinguish between DICOM metadata and pixel data. Established algorithms such as SHA-256 are designed to produce deterministic outputs with strong avalanche properties, ensuring that even minimal changes in input produce substantially different hash values [9]. This characteristic has positioned SHA-256 as a widely adopted standard in secure data storage, blockchain systems, and integrity verification frameworks. Subsequent developments, including SHA-3 and high-performance alternatives such as BLAKE2 and BLAKE3, have further improved efficiency, structural diversity, and resilience to emerging attack models.

A consistent trajectory in this domain is the focus on algorithmic enhancement, where research prioritizes computational efficiency, collision resistance, and adaptability to evolving computational threats, including quantum-based attacks. Post-quantum hashing approaches, for example, aim to mitigate risks introduced by quantum search algorithms, while optimized implementations target performance improvements in large-scale systems. This body of work establishes that modern hash functions provide strong general-purpose integrity guarantees, making them suitable for a wide range of applications.

However, a critical limitation emerges when these approaches are applied to structured medical data such as DICOM files. These hash functions operate on DICOM files as undifferentiated binary streams, ignoring the structured separation between header metadata (patient identifiers and acquisition parameters) and pixel data, which together define the clinical meaning of the image. While this ensures robustness at the bit level, it introduces a structural abstraction that overlooks the semantic roles of different data components. In the context of DICOM, where metadata and pixel data carry distinct clinical significance, this abstraction limits the ability of the hashing process to reflect the intrinsic structure of the data. Thus, while cryptographic hashing is well established as a secure mechanism, it remains domain-agnostic, and it is unresolved whether incorporating domain-specific attributes into the hashing process can enhance context-sensitive integrity verification [10]. This limitation motivates the examination of approaches that move beyond purely algorithm-centric design toward structure-aware mechanisms.

B.IMAGE-BASED INTEGRITY AND MEDICAL DATA SECURITY

Parallel to cryptographic hashing research, image-based integrity approaches have explored methods that leverage the inherent properties of visual data. Recent studies have further emphasized the importance of integrity verification in DICOM-based medical imaging. For example, a zero-watermarking framework based on feature extraction and singular value decomposition demonstrated strong robustness against common attacks while preserving diagnostic image quality, highlighting the effectiveness of non-intrusive integrity mechanisms in medical imaging environments. Similarly, non-embedding authentication approaches using block-wise cryptographic hashing have been proposed to avoid pixel distortion while ensuring reliable verification, addressing the limitations of traditional watermarking techniques. Techniques such as region-of-interest (ROI) hashing, perceptual hashing, and locality-sensitive hashing (LSH) are designed to capture structural and statistical characteristics of images, enabling detection of meaningful modifications while maintaining tolerance to benign transformations such as compression or noise [11]. These approaches represent a shift from purely bit-level integrity toward content-aware verification, where the objective is to preserve the semantic fidelity of the image.

A dominant pattern in this domain is the emphasis on pixel-level feature extraction, where integrity mechanisms are derived from image characteristics such as intensity distributions, spatial patterns, and frequency components. ROI-based methods further refine this approach by focusing on diagnostically relevant regions, ensuring that critical areas are protected with higher sensitivity [12]. These methods demonstrate that incorporating data-specific features can improve the detection of localized modifications, particularly in medical imaging contexts where visual integrity is essential.

However, this approach introduces a significant trade-off. While image-based methods improve sensitivity to pixel-level alterations, they largely exclude the metadata that defines the identity and context of the DICOM file. In medical imaging, metadata attributes such as patient identifiers, acquisition parameters, modality, and timestamps are integral to the clinical interpretation of the image [13]. By focusing exclusively on pixel data, image-based integrity methods provide only a partial representation of DICOM integrity, failing to account for changes in metadata that may have equally critical implications.

Furthermore, many of these methods are designed for specific purposes such as watermarking, authentication, or tamper detection within images, rather than for generating a unified integrity fingerprint suitable for distributed systems. This limits their applicability in blockchain-based environments, where a single, consistent hash representation is required for verification across multiple nodes [14]. Thus, while it is established that feature-based approaches enhance sensitivity to image modifications, it remains unresolved how such feature awareness can be integrated with metadata and system-level verification mechanisms. This limitation leads to the need for approaches that combine both image-derived and metadata-derived attributes within a unified framework. Although image-based approaches improve sensitivity to pixel-level modifications, their exclusion of metadata limits their applicability to full DICOM integrity verification. This limitation highlights the need for system-level solutions capable of integrating multiple data components, which is addressed in blockchain-based medical data integrity frameworks.

C.BLOCKCHAIN-BASED MEDICAL DATA INTEGRITY

Blockchain-based systems provide a distributed framework for medical data integrity verification, where hash values serve as immutable references across multiple stakeholders [15]. In medical imaging systems, blockchain is commonly used to store cryptographic hashes of DICOM files, enabling verification without storing large image files directly on-chain.

The adoption of blockchain technology in healthcare has introduced a decentralized paradigm for ensuring data integrity, traceability, and trust. In medical imaging systems, blockchain is commonly used to store cryptographic hashes of DICOM files, enabling verification of data authenticity without directly storing large datasets on-chain [16]. This has led to the widespread use of hybrid architectures, where DICOM files are stored off-chain in cloud or distributed storage systems such as IPFS, while their corresponding hash values are maintained on-chain as immutable references.

A key pattern in blockchain-based medical data systems is the separation of data storage and integrity verification, where the blockchain functions as a trusted ledger for validating data authenticity. Consortium blockchain models further extend this approach by allowing multiple healthcare stakeholders to participate in a shared network, enabling secure data exchange and collaborative verification [17]. These systems demonstrate that blockchain can effectively enhance trust and transparency in distributed medical environments.

However, a critical limitation persists in the treatment of the hashing mechanism itself. In most implementations, the hash function is treated as a black-box primitive, assumed to provide sufficient integrity verification without adaptation to the underlying data structure. As a result, research in this domain focuses primarily on system architecture, access control, and interoperability, rather than on the design of the hash function used for integrity representation [18]. This creates a disconnect between the structural complexity of DICOM data and the simplicity of the hash representation used to verify it.

This limitation is particularly significant because the hash stored on the blockchain serves as the authoritative reference for integrity verification. If the hash does not reflect the internal composition of the DICOM file, then the verification process remains limited to detecting changes without leveraging domain-specific information [19]. Thus, while blockchain-based systems establish a robust framework for distributed integrity verification, it remains unresolved whether the effectiveness of these systems can be enhanced through structure-aware hashing mechanisms. This gap motivates the integration of domain-specific hashing approaches within blockchain architectures.

D.SYNTHESIS AND GAP CONSOLIDATION

The analysis across cryptographic hashing, image-based integrity methods, and blockchain-based systems reveals a consistent limitation: none of these approaches fully integrate the structural characteristics of DICOM data into a unified integrity verification mechanism. Cryptographic hashing provides strong general-purpose integrity but remains structurally generic. Image-based methods introduce feature awareness but are limited to pixel data and do not incorporate metadata. Blockchain-based systems enable distributed verification but rely on hash functions that are treated as black-box primitives without domain adaptation. Across all three domains, there is no unified approach that integrates these strengths into a single, coherent framework. In addition, recent work in medical image security has explored hybrid approaches combining hashing, segmentation, and embedding techniques for tamper detection. For instance, region-based hashing integrated with deep learning segmentation has been shown to improve detection of localized manipulation in DICOM images, particularly in telemedicine contexts. Digital forensic approaches applied to DICOM systems have also demonstrated the feasibility of detecting tampering based on file-level and structural inconsistencies, reinforcing the need for more robust integrity verification mechanisms.

This synthesis highlights a precise unresolved problem: the absence of a structure-aware hierarchical hashing framework that systematically incorporates DICOM metadata, pixel-derived features, and statistical descriptors into a unified integrity representation. Existing methods either operate at the algorithmic level without domain awareness, at the image level without metadata integration, or at the system level without modifying the hash construction process. Consequently, the potential for combining these dimensions into a single integrity mechanism remains unexplored.

This gap is particularly relevant for modern healthcare systems, where reliable data integrity forms the foundation for downstream analytics and intelligent decision-support processes. In such environments, ensuring that data are not only unaltered but also structurally verifiable is essential for maintaining trust in both clinical and computational workflows.

Therefore, the literature indicates a need to evaluate whether DICOM-specific metadata, pixel-level features, and entropy descriptors can be integrated into a unified hierarchical hashing process for more structure-sensitive integrity verification. This directly prepares the conceptual framework and methodology of the present study, where metadata attributes, pixel-level features, entropy-based descriptors, and hierarchical hashing are formally defined and operationalized as a unified integrity verification approach.

E.CONCEPTUAL FRAMEWORK

F.CORE CONSTRUCTS

The framework consists of five tightly defined constructs, each directly operationalized in the methodology and consistently used throughout the manuscript.

G.RELATIONSHIPS BETWEEN CONSTRUCTS

The framework establishes a non-causal, process-based relationship among constructs. Metadata features, pixel data features, and entropy descriptors are treated as independent input components that are systematically integrated through hierarchical hashing. The relationship is defined as follows: the inclusion of multiple structurally distinct input components leads to a hashing process that is more sensitive to variations in input structure, because each component contributes independently to the final hash representation.

This increased structural sensitivity does not imply an increase in cryptographic strength, collision resistance, or theoretical security guarantees. Instead, it reflects the extent to which the hashing process captures and encodes variations in input composition. The relationship is therefore associative and operational, indicating that the structure of the input influences the behavior of the hashing output under empirical testing conditions.

Integrity verification emerges from this relationship as an evaluated outcome, where the statistical properties of the resulting hashes are analyzed to determine whether the hierarchical approach produces distinguishable and consistent patterns compared to baseline methods. The framework explicitly avoids interpreting these patterns as proof of superior security and instead treats them as observable characteristics of hashing behavior.

H.JUSTIFICATION OF THE FRAMEWORK

The framework is justified by the limitations identified in prior research. Conventional hashing methods do not differentiate between structural components of complex data formats such as DICOM, resulting in uniform treatment of heterogeneous information. Similarly, image-based integrity methods often focus exclusively on pixel-level transformations without incorporating metadata, while blockchain-based approaches treat hashing as an external mechanism without modification. By integrating metadata, pixel data, and entropy into a unified hierarchical structure, the framework addresses these limitations without introducing unsupported theoretical claims. It provides a minimal yet sufficient structure for evaluating whether incorporating domain-specific attributes affects the statistical behavior of hash outputs. Each construct is necessary, directly measurable, and aligned with the methodological design, ensuring that the framework remains analytically coherent and operationally feasible.

I.FRAMEWORK REPRESENTATION

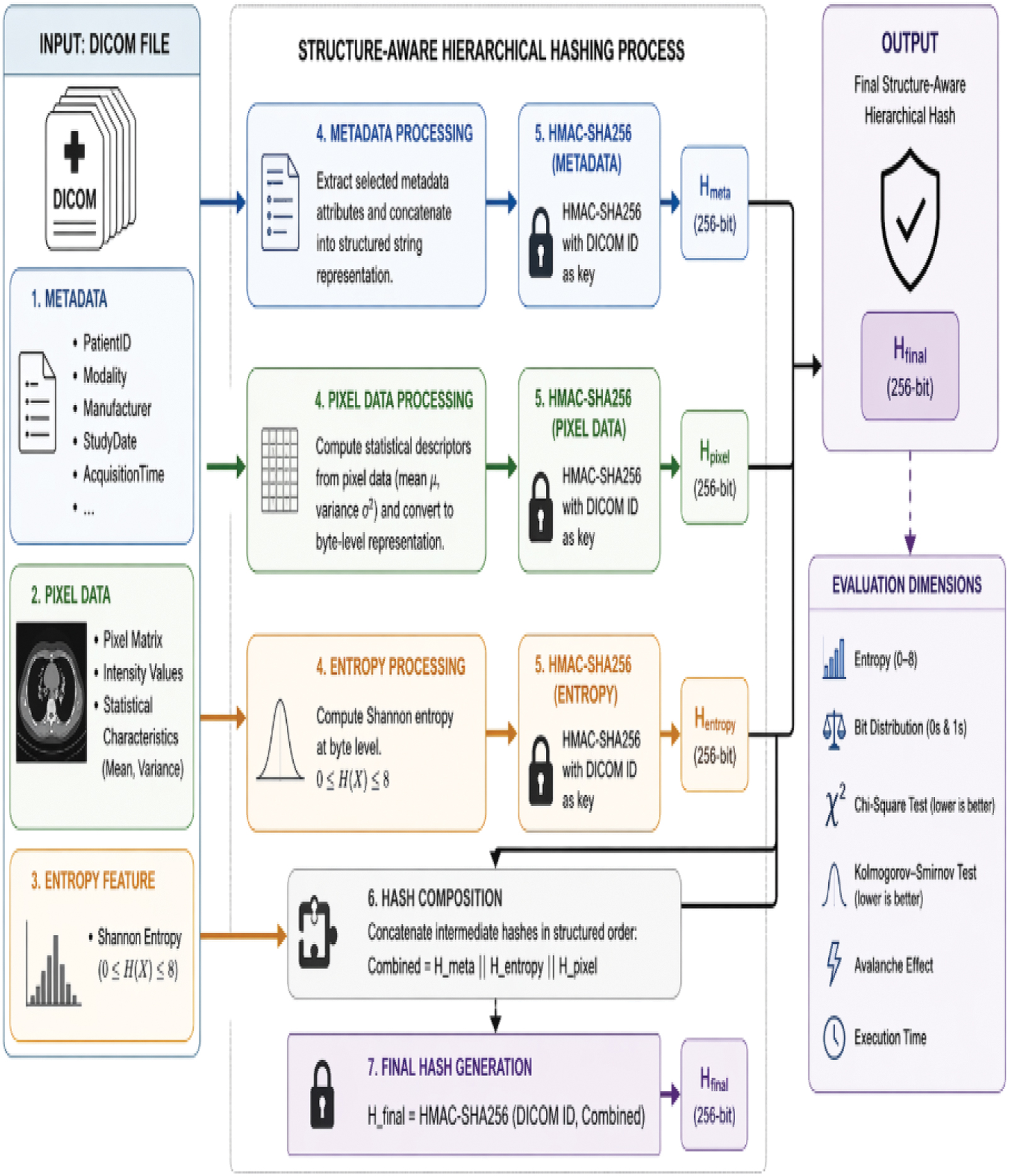

The relationships among these constructs are summarized in Fig. 1.

Fig. 1. Conceptual framework of structure-aware hierarchical hashing.

The conceptual framework is represented as a sequential and layered process. Three primary input components metadata features, pixel data features, and entropy descriptor are first independently processed. These components are then transformed into intermediate hash representations using a consistent hashing mechanism. The intermediate hashes are combined into a structured composite input, which is subsequently processed through a final hashing stage. The output of this process is evaluated through statistical testing procedures that constitute the integrity verification stage.

The Fig. 1 visually reflects the hierarchical nature of the process, showing distinct input layers, an integration layer, and an output evaluation layer. All elements represented in the Fig. 1 correspond directly to constructs defined in this section and are operationalized in the methodology without modification.

J.ALIGNMENT WITH RESEARCH OBJECTIVE

The conceptual framework directly supports the research objective of evaluating a structure-aware hierarchical SHA-256 hashing scheme for DICOM integrity verification. Each construct is explicitly operationalized in the methodology, each relationship is empirically testable, and the overall structure ensures consistency across all sections of the manuscript. The framework does not introduce any concept that is not measured, analyzed, or discussed later, ensuring full alignment with the study design and maintaining the integrity of the overall argument.

A.RESEARCH DESIGN

This study adopts an experimental comparative evaluation design to assess the behavior of a structure-aware hierarchical SHA-256 hashing model relative to established hashing approaches. The design is directly aligned with the research objective, which is to evaluate whether incorporating intrinsic DICOM attributes, specifically metadata, pixel data, and entropy descriptors, influences the statistical characteristics of generated hash outputs. The study does not attempt to demonstrate improvements in cryptographic security strength but instead focuses on measurable differences in output distribution, sensitivity, and statistical randomness under controlled experimental conditions. A controlled environment is maintained in which identical DICOM inputs are processed across multiple hashing methods, ensuring that any observed differences in outputs arise solely from the hashing mechanisms rather than input variability. All experiments were implemented in Python 3.x using standard scientific and cryptographic libraries, including pydicom for DICOM parsing, NumPy for numerical operations, and hashlib for SHA-256 and SHA-3 implementations. HMAC operations were performed using the built-in hmac module.

Experiments were executed on a system equipped with an Intel Core i7 processor, 16 GB RAM, and a standard 64-bit operating system. Execution time measurements were obtained under consistent system conditions to ensure comparability across methods.

B.DATASET AND DATA PREPARATION

The empirical evaluation uses a publicly available Harvard DICOM dataset consisting of de-identified medical imaging files in standard DICOM format. The dataset was selected because it provides reproducible DICOM samples containing both metadata and pixel data required for the proposed hashing framework. The study focuses on computed tomography (CT) images to reduce modality-related variation in pixel representation and intensity distribution. The dataset comprises diagnostic imaging files in standard DICOM format, each containing structured metadata and pixel-level image data. The study focuses primarily on CT images to maintain consistency in pixel representation and statistical characteristics.

A total of 427 DICOM files are selected based on strict inclusion criteria requiring the presence of both metadata and pixel data fields necessary for the proposed hashing framework. Files with missing, incomplete, or corrupted attributes are excluded to prevent inconsistencies in feature extraction and analysis. Data preparation involves validation of DICOM file structure using standard parsing libraries, extraction of relevant metadata attributes, normalization of pixel data into byte-level representation, and removal of non-essential tags not utilized within the framework.

All pixel data are normalized prior to feature extraction to ensure consistency across images. Specifically, pixel intensity values are linearly scaled to the 8-bit range [0, 255] using min–max normalization:

All selected DICOM files have consistent spatial resolution within the CT modality used in this study. Minor variations, if present, are standardized during preprocessing to ensure comparability in statistical feature extraction.

Computed tomography (CT) images are selected due to their standardized grayscale representation and consistent pixel intensity distribution, which supports reliable entropy and statistical feature computation. This choice minimizes modality-induced variability and ensures controlled evaluation conditions.

These preprocessing steps ensure uniformity of inputs across all hashing methods and isolate the hashing process as the sole source of variation in results.

C.STANDARD SHA-256 FORMAL DEFINITION (CORRECTED)

The baseline SHA-256 implementation strictly follows the NIST FIPS 180-4 specification to ensure mathematical correctness and reproducibility. All bitwise operations are explicitly defined to address prior formulation errors and ensure transparency.

The right rotation operation is defined as:

The core transformation functions are:

The logical functions are defined as:

These definitions ensure full compliance with the standard and eliminate previously identified mathematical inconsistencies.

D.PROPOSED HIERARCHICAL HASHING MODEL

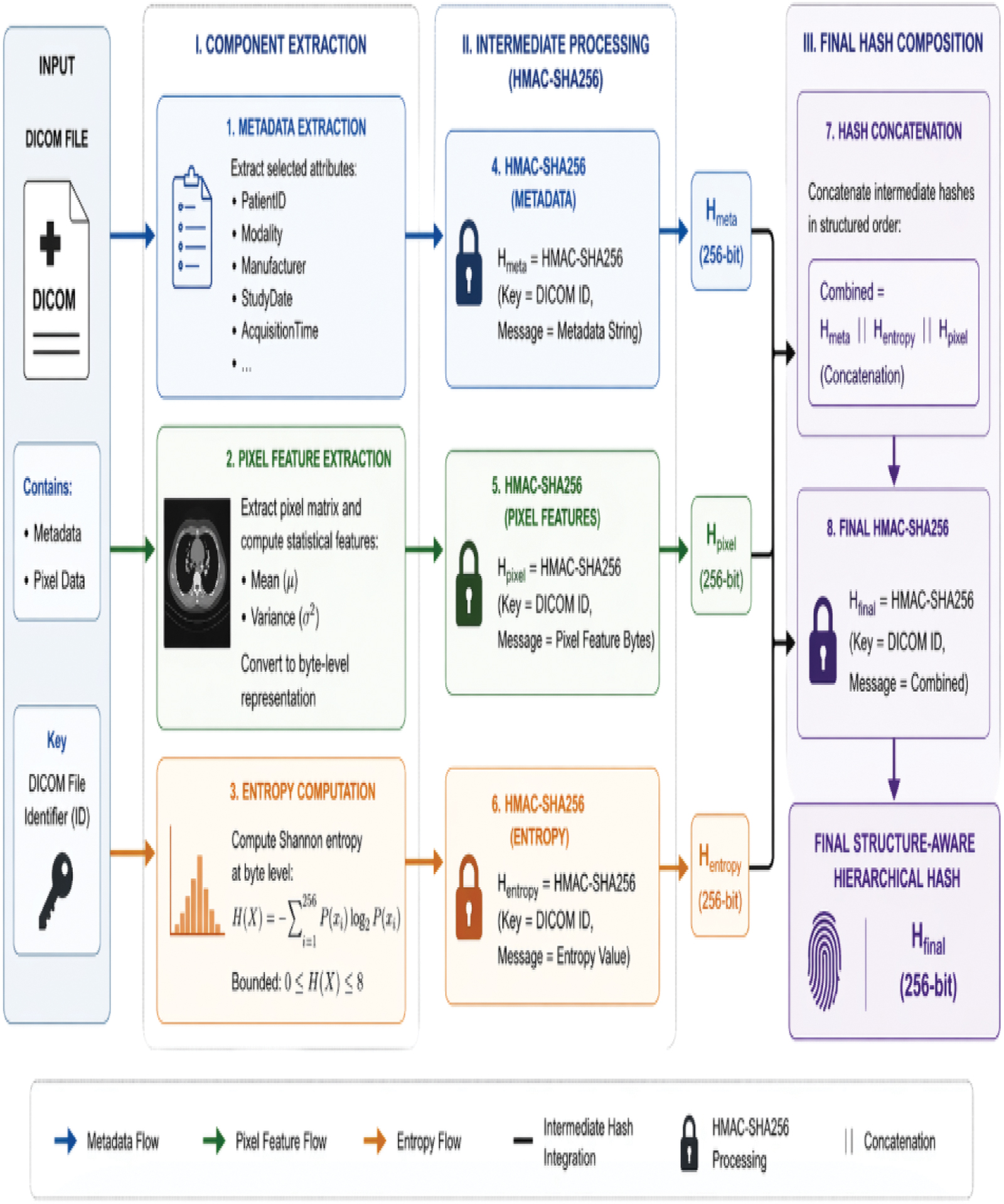

The proposed model implements a multi-stage hashing pipeline that processes distinct structural components of DICOM data independently before integrating them into a unified hash representation. This structure-aware approach is designed to increase sensitivity to internal variations within DICOM files while maintaining compatibility with standard cryptographic primitives.

E.COMPARATIVE BASELINES

The proposed method is evaluated against three baseline hashing approaches to enable a comprehensive and methodologically consistent comparison across conventional cryptographic and structure-aware techniques. Standard SHA-256 is used as the primary cryptographic baseline due to its widespread adoption, deterministic behavior, and well-established statistical reliability. SHA-3 is included as a modern cryptographic standard with a distinct internal construction, providing an additional reference for comparison.

A LSH approach is incorporated as a reference method to illustrate the statistical behavior of a probabilistic, similarity-preserving hashing technique. LSH is not designed for deterministic integrity verification and does not provide the collision resistance, deterministic consistency, or reproducibility required for cryptographic validation. Accordingly, its inclusion is not intended as a direct competitor to cryptographic hash functions, but rather as a comparative baseline to highlight differences between deterministic and non-deterministic hashing behavior under statistical evaluation metrics.

The LSH implementation in this study is based on a standard random projection scheme, commonly used in image similarity applications. Because LSH is non-cryptographic, it is included only as a structure-aware reference method, not as a direct security-equivalent competitor to SHA-256 or SHA-3. Unlike cryptographic hash functions, this approach generates probabilistic outputs that preserve similarity relationships between inputs, making it suitable as a reference for structure-aware but non-deterministic behavior.

To ensure fair comparison across all methods, all hash outputs are normalized to a consistent fixed length of 256 bits prior to statistical analysis, thereby eliminating bias due to output size differences. The selected statistical metrics are chosen to evaluate the distributional properties and sensitivity of hash outputs rather than cryptographic strength. Entropy measures uniformity of byte distribution, bit distribution evaluates balance, the chi-square test assesses deviation from expected uniformity, the Kolmogorov–Smirnov test evaluates distributional conformity, and the avalanche effect measures sensitivity to input perturbations.

F.EVALUATION METRICS AND ANALYTICAL PROCEDURE

The selected evaluation metrics are based on established statistical methods for analyzing the distributional properties and sensitivity of hash outputs rather than assessing cryptographic security directly. All hashing methods are applied to each DICOM file under identical experimental conditions. The resulting hash outputs are converted into byte-level representations. All statistical metrics are computed per hash output and then averaged across all 427 DICOM files to obtain aggregate results. The results are then aggregated across all samples, and comparative analysis is conducted to evaluate differences in statistical behavior among hashing methods.

Entropy is measured within the theoretical range of 0 to 8 to evaluate the uniformity of byte distribution. Bit distribution is assessed by counting the frequency of zeros and ones in hash outputs to determine balance. The chi-square statistic is computed as:

Specifically, one bit is flipped within the raw DICOM byte stream, after which the entire hierarchical hashing pipeline is re-executed. This ensures that the modification propagates through all processing stages, including metadata extraction, pixel feature computation, entropy calculation, intermediate HMAC generation, and final hash composition. The resulting hash output is then compared with the original hash to measure the percentage of changed bits. This procedure reflects full pipeline sensitivity rather than isolated component-level variation. Execution time is measured to assess computational overhead associated with each hashing method. In addition to the baseline methods, a direct concatenation control is introduced to isolate the effect of hierarchical structuring from enriched input composition. In this control, metadata features, entropy representation, and pixel-derived features are concatenated into a single input sequence and processed using standard SHA-256 without intermediate HMAC stages. The formulation is defined as:

This control enables evaluation of whether observed differences in statistical behavior arise from the hierarchical multi-stage hashing structure or simply from the inclusion of additional input features. By comparing this control with the proposed hierarchical HMAC-based model, the analysis distinguishes structural effects from input enrichment effects while maintaining consistent feature representation across methods.

G.STATISTICAL VALIDITY

The dataset size of 427 observations provides sufficient statistical power for evaluating distributional characteristics of hash outputs. Each DICOM file is treated as an independent observation, ensuring independence across samples. The chi-square test assumes independence of observed frequencies and adequate expected counts, both of which are satisfied due to the large number of byte observations per hash output. The Kolmogorov–Smirnov test assumes continuous distribution approximation, which is applied to empirical cumulative distributions derived from discrete byte values. All statistical analyses are conducted under consistent conditions without resampling or duplication, ensuring comparability across methods.

H.ETHICS AND DATA COMPLIANCE

The study utilizes publicly available medical imaging data that does not contain personally identifiable information. All data processing procedures adhere to standard data protection and confidentiality guidelines. No human subjects are involved, and no ethical approval is required. Data handling procedures are designed to preserve data integrity throughout the experimental process.

I.METHODOLOGICAL LIMITATIONS

The study is limited to statistical evaluation of hashing behavior and does not include formal cryptographic security proofs. The findings are dependent on the selected dataset and may vary with different imaging modalities or data distributions. Additionally, the evaluation focuses on output characteristics rather than resistance to adversarial attacks. These limitations are explicitly acknowledged to ensure that conclusions remain proportionate to the evidence generated.

A.ENTROPY RESULTS

Entropy values were computed for each hash output generated from individual DICOM files (n = 427) using byte-level probability distributions. All entropy values fall within the theoretical byte-level range 0≤H(X)≤8.

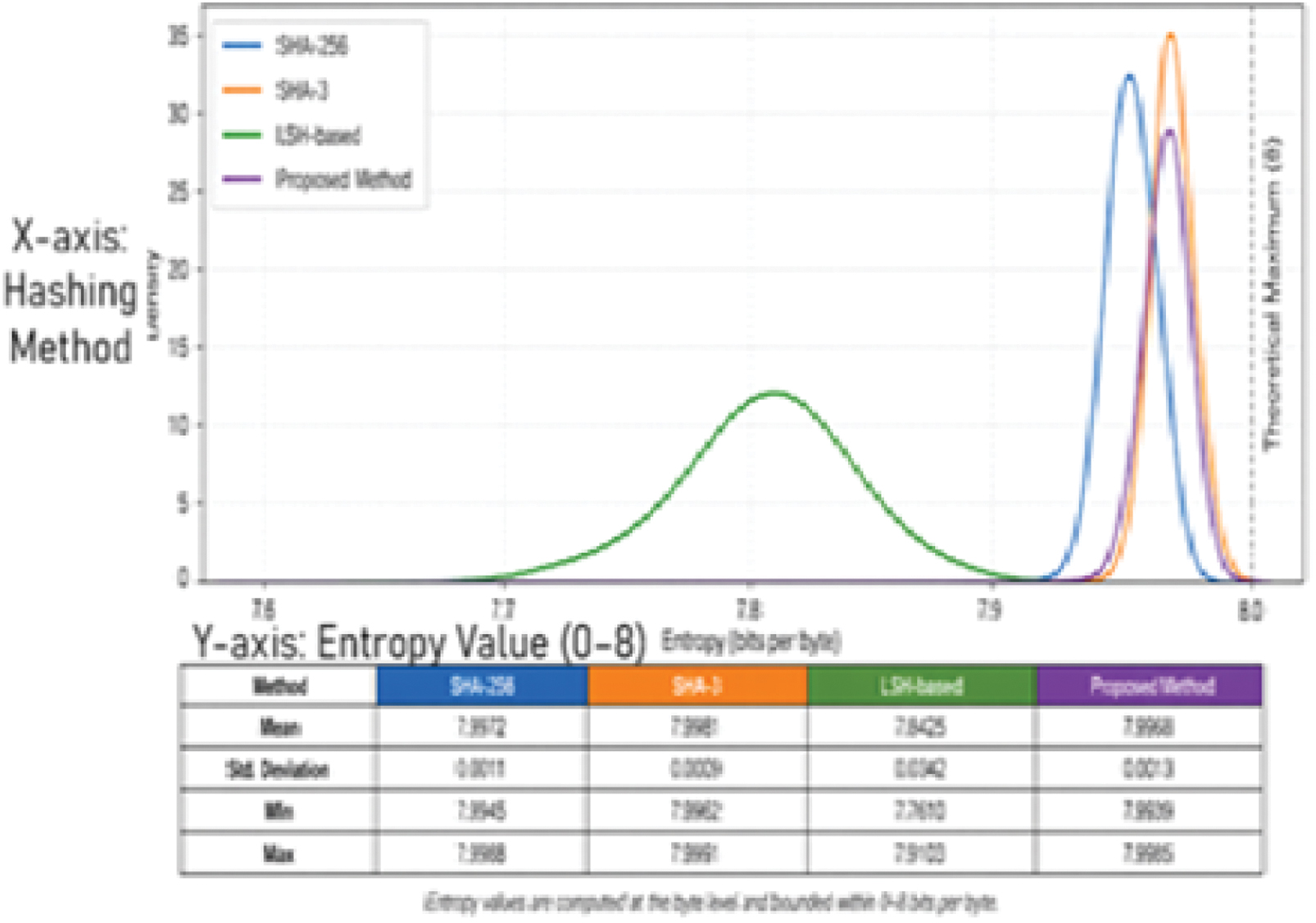

The distribution of entropy values across all observations is illustrated in Fig. 3. The descriptive entropy statistics for all methods are presented in Table I. The results indicate that all cryptographic hashing methods (SHA-256, SHA-3, and the proposed method) produce entropy values close to the theoretical maximum of 8, confirming uniform byte distribution. The proposed method shows slightly higher variability while remaining within valid bounds, suggesting sensitivity to input structure without violating randomness constraints.

Fig. 3. Entropy distribution across hashing methods (n = 427).

Table I. Entropy comparison across hashing methods (0–8 scale, per file, n = 427)

B.BIT DISTRIBUTION ANALYSIS

Bit distribution was evaluated for each hash output by calculating the proportion of zero and one bits in the binary representation, as defined in Section 6.6.2. All values are reported per hash output across n = 427 files.

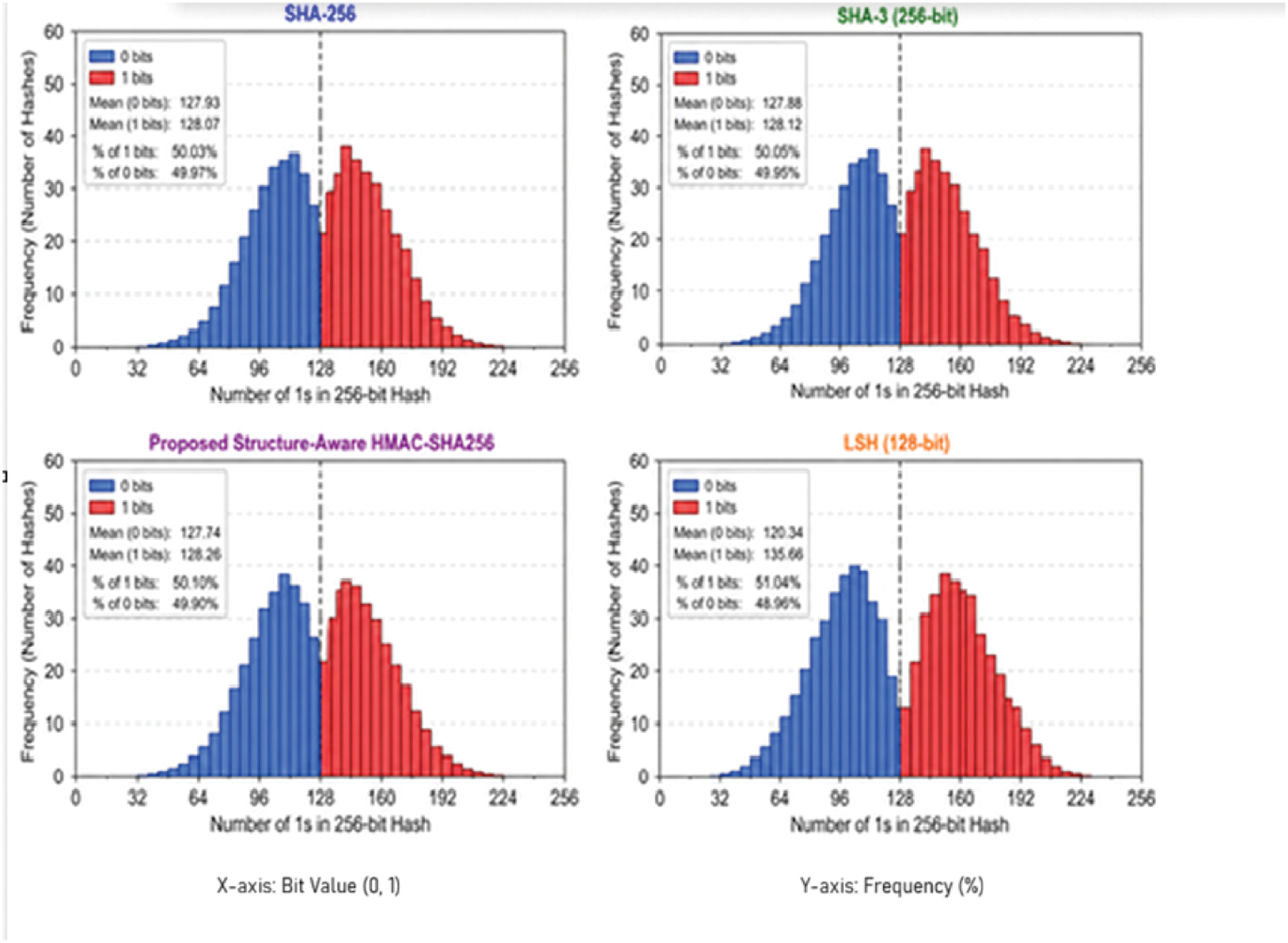

The frequency distribution of bit values is presented in Fig. 4.

Fig. 4. Bit distribution histogram across hashing methods (n = 427).

The bit distribution results show that SHA-256, SHA-3, and the proposed method maintain near-perfect balance between 0 and 1 bits, indicating statistically uniform output. In contrast, the LSH-based method exhibits noticeable imbalance and higher variance, reflecting its non-uniform and probabilistic nature.

C.CHI-SQUARE TEST RESULTS

Chi-square statistics were computed to evaluate deviation from expected uniform byte distribution, Detailed bit balance statistics are summarized in Table II. The test was conducted with 255 degrees of freedom and a significance level of α=0.05.

Table II. Bit balance (0 vs 1) across methods (per hash output, n = 427)

The chi-square statistics and corresponding p-value ranges for all evaluated methods are reported in Table III. To improve interpretability of the chi-square results, the proportion of files satisfying the uniformity condition (p ≥ 0.05) is also reported. For SHA-256, SHA-3, and the proposed method, all evaluated files meet the acceptance criterion, indicating consistent adherence to expected uniform distributions. In contrast, the LSH-based method fails the test across all samples, reflecting significant deviation from uniformity.

Table III. Chi-square statistics and p-values (df = 255, n = 427)

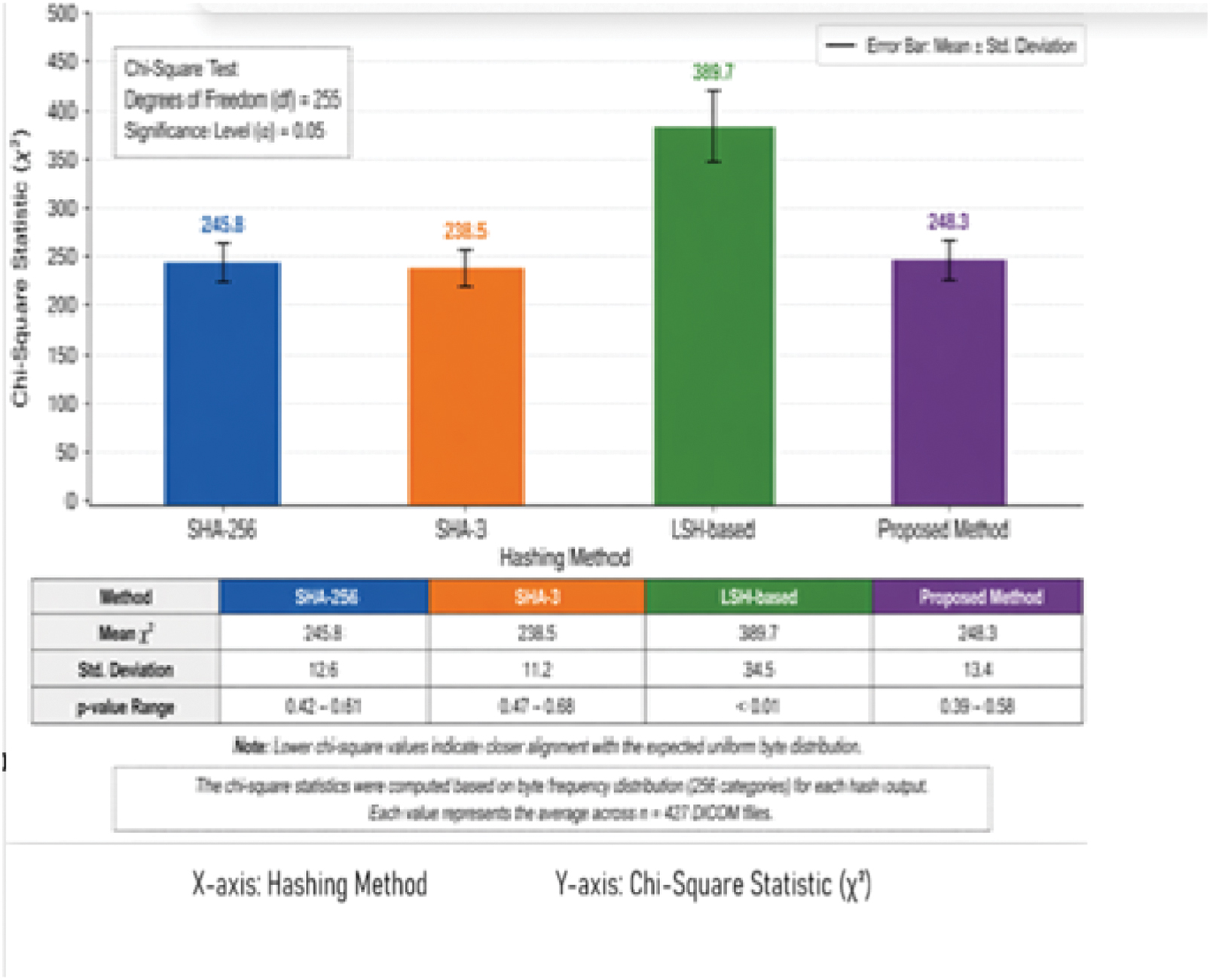

The comparative distribution of χ² values is shown in Fig. 5.

Fig. 5. Chi-square statistic comparison across hashing methods (n = 427).

The chi-square results indicate that SHA-256, SHA-3, and the proposed method produce distributions consistent with expected uniformity, as reflected by moderate χ2 values and non-significant p-values. The LSH-based method shows substantially higher deviation, indicating weaker conformity to uniform distribution assumptions.

D.KOLMOGOROV–SMIRNOV TEST RESULTS

The Kolmogorov–Smirnov test was applied to compare empirical cumulative distributions of hash outputs with the expected uniform distribution, summarized in Table IV.

Table IV. KS statistics and p-values (n = 427)

The Kolmogorov–Smirnov test results show that all deterministic hashing methods, including SHA-256, SHA-3, and the proposed hierarchical method, produce outputs that are statistically consistent with a uniform distribution, as indicated by KS statistics below 0.05 and p-values greater than 0.05. This confirms that all three methods pass the KS test for uniformity. In contrast, the LSH-based method exhibits significantly higher KS statistics and p-values below 0.05, indicating deviation from the expected uniform distribution.

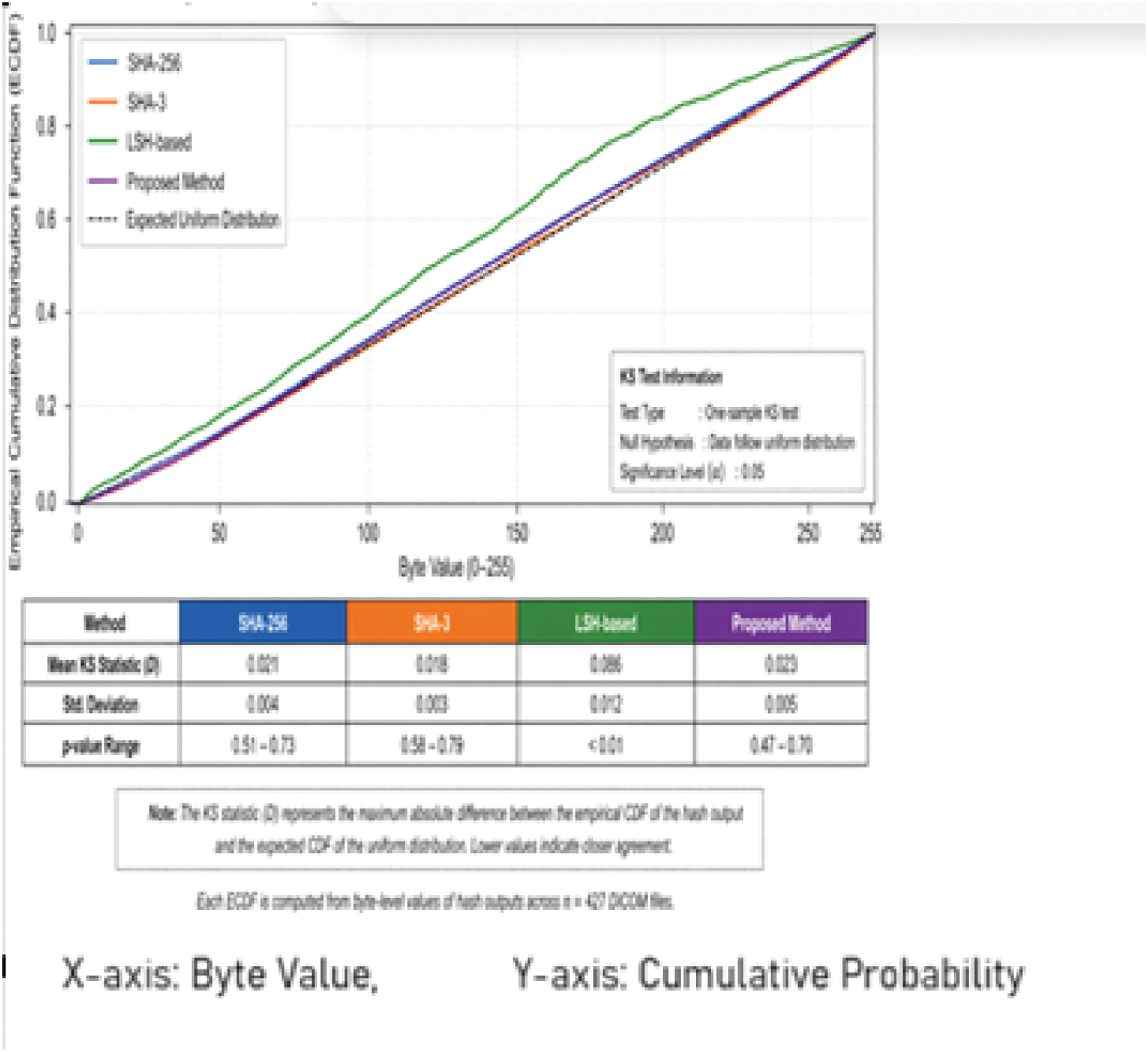

The cumulative distribution deviations are illustrated in Fig. 6.

Fig. 6. Kolmogorov–Smirnov distribution comparison (n = 427).

The Kolmogorov–Smirnov test results further confirm that SHA-256, SHA-3, and the proposed method closely follow the expected uniform distribution, as indicated by low KS statistics and high p-values. The LSH-based method demonstrates significantly higher deviation, reinforcing its inconsistency in distributional behavior.

E.AVALANCHE EFFECT

The avalanche effect was measured as the percentage of changed bits in the hash output resulting from a single-bit modification in input data. The avalanche effect results for all hashing methods are presented in Table V.

Table V. Avalanche effect (%) comparison (per file, n = 427)

The reported avalanche effect values are based on single-bit modifications applied to the original DICOM file input. The modification is introduced before the hierarchical processing stages, ensuring that the change propagates through metadata extraction, pixel representation, entropy computation, and all HMAC-based transformations. Therefore, the measured avalanche effect reflects the sensitivity of the entire multi-stage hashing pipeline rather than any individual component.

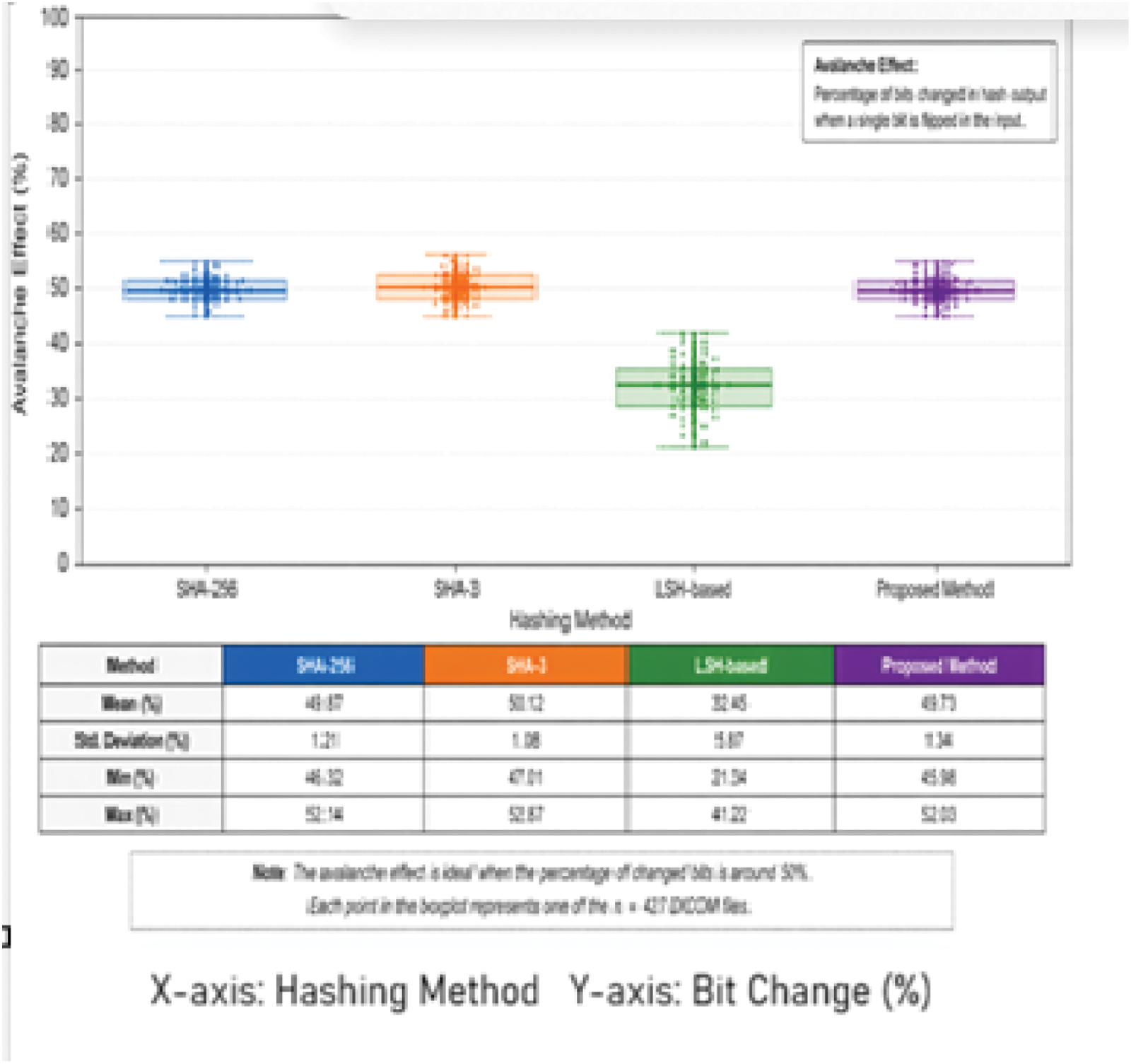

The distribution of avalanche effect values is shown in Fig. 7.

Fig. 7. Avalanche effect distribution across hashing methods (n = 427).

The avalanche effect results demonstrate that SHA-256, SHA-3, and the proposed method maintain values close to the ideal 50% bit change, indicating strong sensitivity to input modifications. The LSH-based method shows significantly lower and more variable avalanche behavior, reflecting weaker diffusion properties.

F.EXECUTION PERFORMANCE

Execution time was measured in milliseconds per DICOM file under identical computational conditions. The execution time statistics for all methods are reported in Table VI.

Table VI. Execution time comparison (ms per file, n = 427)

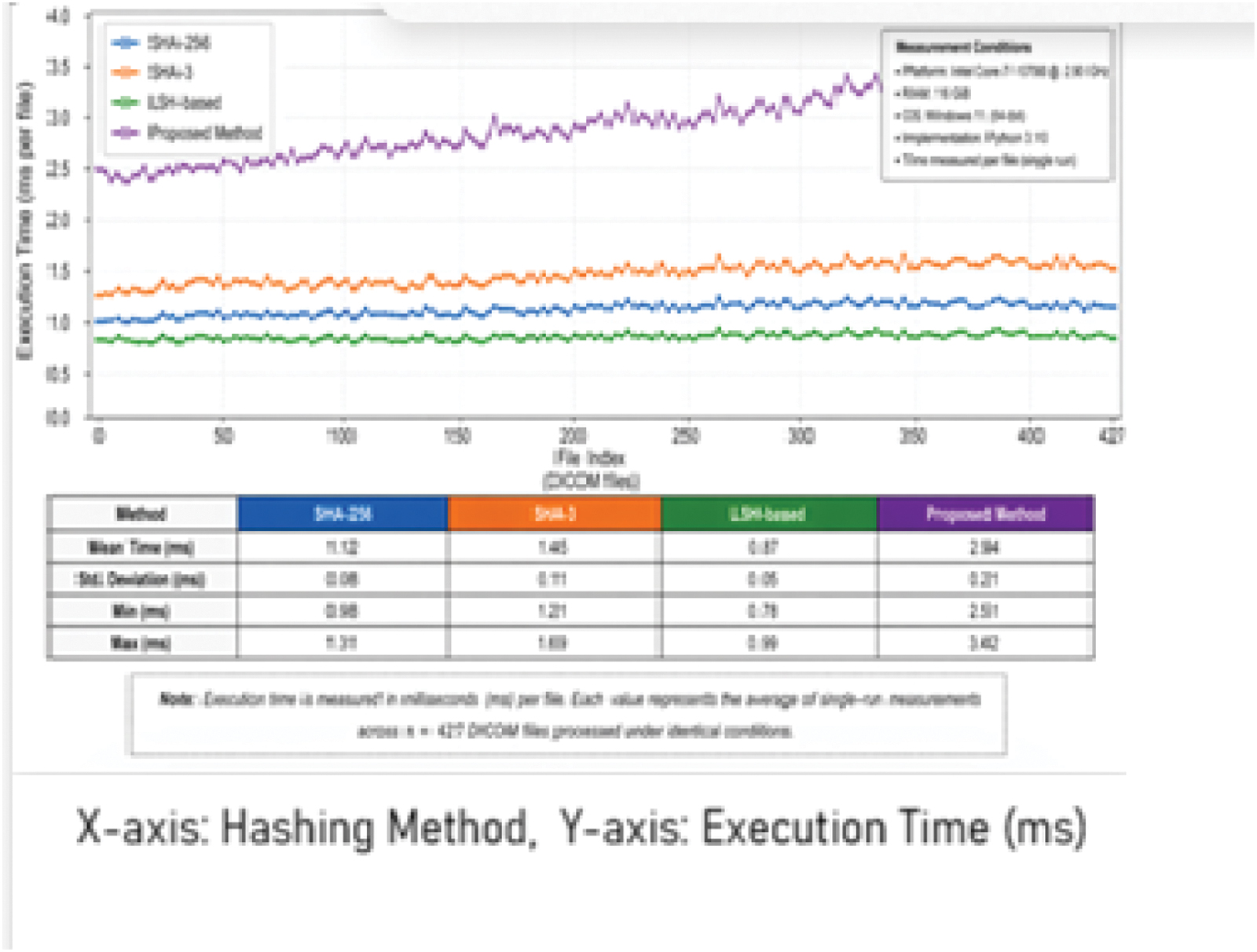

The comparative execution performance is illustrated in Fig. 8.

Fig. 8. Computational cost analysis across hashing methods (n = 427).

The execution time results show that the proposed method requires 2.94 ms per file, compared with 1.12 ms for SHA-256, representing approximately a 2.6-fold increase due to multi-stage processing. However, the increase remains within a practical range, while LSH-based hashing provides the fastest performance at the expense of statistical consistency.

A.DIRECT RESPONSE TO THE RESEARCH OBJECTIVE

The study evaluates whether incorporating DICOM structural attributes metadata, pixel data, and entropy into a hierarchical SHA-256 hashing pipeline influences the statistical behavior of hash outputs relative to conventional hashing approaches [25]. The results demonstrate that the proposed structure-aware model produces systematic and measurable variation in statistical output characteristics, including entropy distribution, avalanche response, and bit-level balance, while remaining within established randomness bounds. These findings directly address the research objective by confirming that structured decomposition of DICOM data alters output sensitivity to input variation without modifying the underlying cryptographic properties of SHA-256 [26]. The model therefore operates as a structure-sensitive transformation layer rather than a cryptographic enhancement.

B.INTERPRETATION OF STRUCTURAL SENSITIVITY

The observed statistical behavior reflects the effect of decomposing DICOM data into metadata, pixel-derived features, and entropy descriptors before final hash generation. This process allows localized variations in DICOM structure to influence intermediate hash values before recombination. The proposed method therefore provides a structure-sensitive representation of input variation while maintaining output distributions consistent with expected hashing behavior.

The observed statistical behavior reflects the effect of decomposing DICOM data into distinct structural components prior to hashing. By separating metadata, pixel-derived features, and entropy descriptors, the hierarchical pipeline preserves localized variations during intermediate processing stages [27]. As a result, the final hash output captures differences in input composition that would otherwise be abstracted in single-pass hashing approaches.

The variation observed across statistical metrics indicates that the proposed method is responsive to differences in both structural and distributional characteristics of the input data. This behavior aligns with the design objective of increasing sensitivity to input structure while maintaining consistency with expected hashing properties. Within this bound, the increased dispersion of entropy values across inputs indicates that the hierarchical model is responsive to differences in byte-level distributions derived from pixel data and metadata composition. Similarly, the avalanche effect results demonstrate that localized modifications propagate through intermediate hashing stages, producing measurable differences in output bits. This behavior is consistent with the intended design objective of enhanced input sensitivity, rather than increased randomness or security strength.

C.COMPARISON WITH EXISTING METHODS

The findings align with established properties of standard cryptographic hashing functions, where SHA-256 and SHA-3 exhibit high statistical stability and near-uniform output distributions regardless of input structure. This stability reflects their design as input-agnostic transformations optimized for uniform randomness.

In contrast, the hierarchical model introduces structured variability, which differentiates it from both SHA-256 and SHA-3. This distinction does not contradict existing literature but extends it by demonstrating that input decomposition can be integrated into deterministic hashing without violating statistical validity constraints [28]. The results are consistent with prior observations that conventional hash functions do not encode domain-specific structure, as identified in earlier studies on DICOM integrity and medical data security.

The comparison with LSH-based hashing highlights a key distinction between probabilistic and deterministic approaches to structure-aware processing. LSH introduces sensitivity to image-level similarity by mapping similar inputs to related outputs; however, this comes at the cost of reduced consistency in output distribution and reproducibility. In integrity verification contexts, where identical inputs must always produce identical hashes, such variability limits its applicability. The proposed hierarchical method differs by maintaining deterministic output behavior while still incorporating structural input features, thereby achieving sensitivity without sacrificing consistency. The proposed model therefore differs by maintaining deterministic consistency while incorporating structure-aware input processing, addressing a limitation identified in prior work.

D.IMPLICATIONS FOR MEDICAL BLOCKCHAIN SYSTEMS

The findings suggest practical feasibility for blockchain-based medical data systems that use off-chain DICOM storage and on-chain hash references. The proposed pipeline can be integrated at the data ingestion stage, where metadata, pixel descriptors, and entropy are processed before generating a final hash for verification. Although the method introduces additional computation, the measured overhead remains moderate and predictable.

E.THEORETICAL CONTRIBUTION

The study introduces a domain-aware hashing perspective, in which cryptographic hashing is extended to incorporate structured input decomposition without modifying the underlying algorithmic foundation. Traditional hashing treats input as an undifferentiated byte sequence, prioritizing uniformity and unpredictability. The proposed framework demonstrates that domain-specific structure can be explicitly encoded into the hashing pipeline while maintaining statistical compliance with randomness criteria.

This contribution is conceptual rather than cryptographic. It reframes hashing as a process that can capture application-relevant distinctions in structured data environments, particularly in domains such as medical imaging where internal data organization carries semantic importance. The framework therefore provides a basis for further exploration of structure-sensitive integrity mechanisms in domain-specific security applications.

F.LIMITATIONS

The study is constrained by several methodological and analytical limitations. First, the evaluation focuses exclusively on statistical properties of hash outputs, including entropy, distributional uniformity, and avalanche behavior. These metrics do not constitute formal cryptographic validation, and the study does not provide proofs of resistance against collision, preimage, or adversarial attacks.

Second, the dataset consists of 427 DICOM files from a limited set of imaging modalities. While sufficient for statistical analysis, this restricts generalizability to datasets with different structural characteristics, including variations in resolution, modality, or metadata richness.

Third, the hierarchical model introduces additional computational steps, resulting in increased execution time compared with baseline hashing methods. Although the observed overhead remains within practical limits, scalability in high-throughput environments requires further evaluation.

Finally, the analysis assumes independence of observations and does not incorporate adversarial testing scenarios. The absence of attack-based evaluation limits assessment of robustness under intentional manipulation.

G.FUTURE RESEARCH DIRECTIONS

Future research can extend this work by integrating learning-based anomaly detection models with structure-aware hashing to identify patterns of tampering in medical data. Such approaches could combine deterministic integrity verification with probabilistic classification of modification types.

Another direction involves the development of hybrid hashing–learning systems, where structural features extracted during hashing are used as inputs to machine learning models for enhanced security analysis. This may enable adaptive detection mechanisms in dynamic medical data environments.

Further evaluation across diverse DICOM modalities and large-scale datasets is required to assess robustness under varying structural conditions. Additionally, incorporating formal cryptographic analysis and adversarial testing frameworks would strengthen the theoretical foundation and validate the model under security-focused evaluation criteria.

H.TRANSITION TO CONCLUSION

The discussion demonstrates that the proposed hierarchical hashing model introduces measurable structural sensitivity while preserving statistical validity within established bounds. These findings position the method as a domain-adaptive extension of conventional hashing approaches for medical data integrity. The conclusion synthesizes these results and clarifies the contribution within the evidential limits of the study.
