Paper Drone Design Based on Pose Estimation Technology

A.DATA AUGMENTATION METHODS IN POSE ESTIMATION AND MOTION CONTROL

In response to the limitations of traditional drone pose estimation and motion control, a study is conducted using deep learning algorithms in artificial intelligence to propose VbPET. When training a model using deep learning algorithms, it is necessary to use large-scale datasets for fast computation. However, paper drones have the characteristics of being lightweight and flexible. When operating paper drones, their motion is often not uniform, and the motion path is not fixed due to external factors such as wind speed [19,20]. Therefore, the workload of collecting all posture and motion data is extremely high. If the sample size in the dataset is small, it will limit the generalization ability of the algorithm, thereby affecting the accuracy of VbPET. Therefore, before introducing VbPET, the study first proposed a Mask-based Data Augmentation (MbDA) method for pose estimation. The core idea of the MbDA method is to randomly mask a portion of frames in the image sequence in the dataset. Specifically, while keeping the overall displacement and rotation of the paper drone basically unchanged, MbDA changes the average speed by changing the number of frames in the sequence, thereby introducing more samples with different speeds in the dataset and enhancing the generalization performance of VbPET.

Research suggests that the core objective of pose estimation tasks is to determine the motion changes of the camera in two consecutive frames of the image, namely the camera’s translation and rotation. This process is divided into two stages, namely feature extraction and pose regression. Among them, feature extraction is the first step of pose estimation task, and features usually include key visual elements such as edges, corners, and the textures in the image. Assuming two input images are I1 and I2, respectively, the extracted features are shown in equation (1):

In equation (1), F represents the feature and f(·) represents the operation related to feature extraction. Further process the extracted feature F and map it to an N dimensional space, with the aim of transforming the feature into points in a high-dimensional space for subsequent pose regression, as shown in equation (2):

In equation (2), aF represents a vector composed of features, where each feature is an element in F and E(·) represents the mapping function. The aF expression is shown in equation (3):

Finally, the embedded feature aF is mapped onto the pose transformation relationship using the pose estimation function, as shown in equation (4):

In equation (4), G(·) represents the pose estimation function, b represents the bias term, W represents the weight matrix used to map features to the pose space, T represents the displacement of two input images, and R represents the rotation of two input images. For a fixed frame rate camera, the time difference between two input images is also fixed. Therefore, T and R can be used to obtain the average linear velocity and average angular velocity of the paper drone in the two input images, as shown in equation (5):

In equation (5), v¯ represents the average linear velocity, w¯ represents the average angular velocity, and Δt represents the time difference, which is inversely proportional to the camera frame rate. It can be inferred that when MbDA changes the number of frames in the input image sequence, the camera frame rate will change, which in turn affects the v¯ and w¯ of the paper drone, thus completing the data augmentation work on the dataset. Therefore, the specific process of constructing the MbDA is shown in Fig. 1.

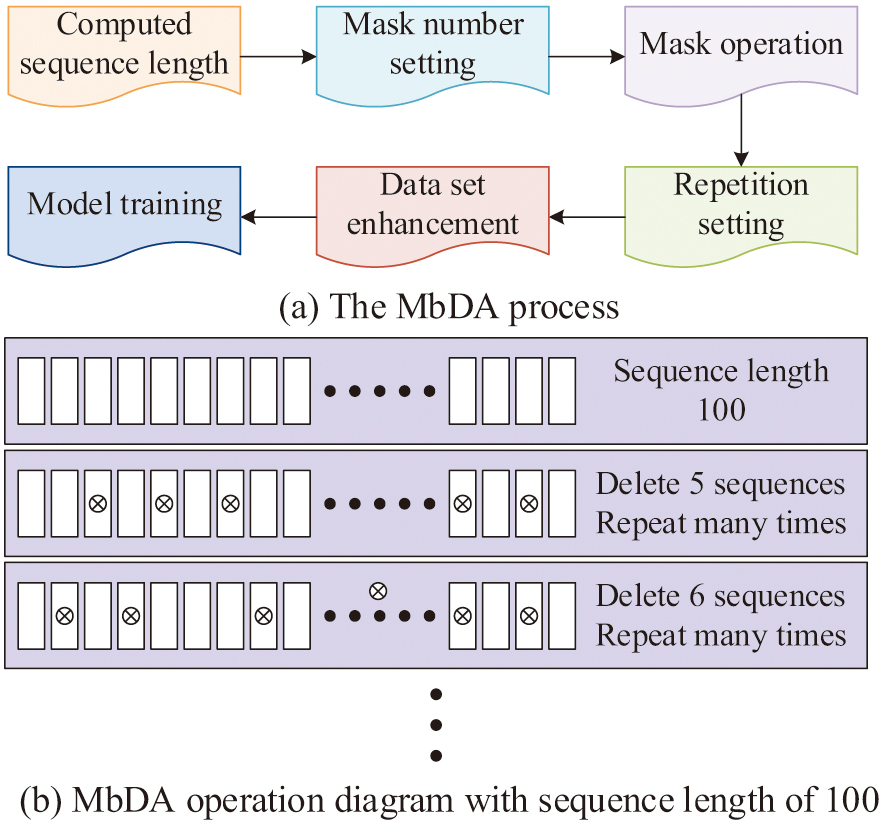

Fig. 1. The specific process of the Mask-based Data Augmentation method.

As shown in Fig. 1(a), MbDA is mainly divided into six steps. First, it calculates the sequence length of paper drone flight data. For example, in the 7Sense dataset containing image sequences for drone pose estimation and motion control research, a single sequence may contain 1000 consecutive flight state data. Then it determines the number of Masks, which is the number of frames to be masked in the sequence. When the sequence length is greater than 100, research suggests that the number of masks should be between 5 and 50. After determining the quantity, it is necessary to perform a Mask operation and randomly select frame sequences and delete them. To ensure the diversity of data augmentation operations, after the first deletion, it is necessary to perform duplicate deletion and set the number of masks before repeating deletion, and each deletion operation randomly selects a frame sequence. After generating multiple subsequences with different velocity characteristics, data augmentation of the dataset is completed, and finally VbPET can be used for training to improve its generalization performance.

When using pose estimation for motion control of paper drones, it is also necessary to perform data augmentation on the motion control dataset. Due to the influence of external environmental factors and internal sensors on the path generated by paper drones from the starting point to the end point, there is diversity in the actual path, and collecting all path samples requires a huge amount of calculation [21]. In fact, to save time, the motion path of paper drones is usually designed based on the shortest path, so there must be repeated common parts in all path samples [22]. In response to this phenomenon, research proposes using sliding windows to perform data augmentation operations, as shown in Fig. 2.

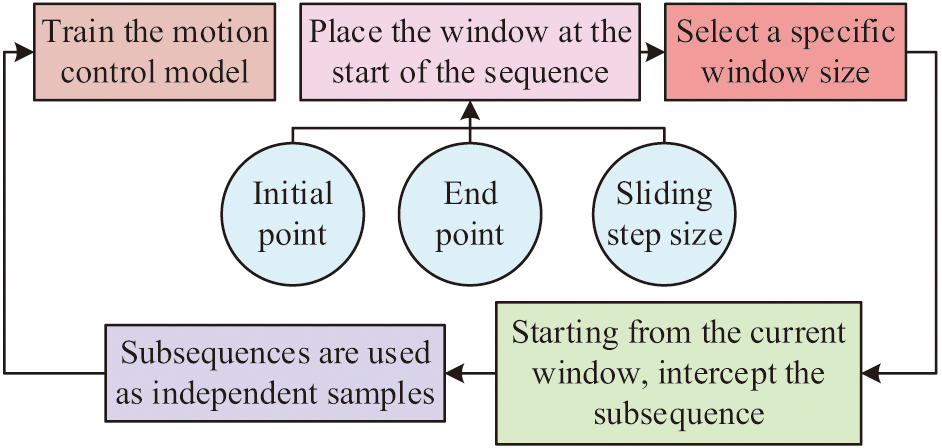

Fig. 2. Data augmentation operations based on sliding windows.

As shown in Fig. 2, when applying the sliding window method, the first step is to set the sequence start point, end point, window size, and sliding step size. Among them, the starting and ending points determine the range of the original sequence, the window size determines the length of the subsequence, and the sliding step determines the number of subsequences. Subsequently, the subsequence is intercepted, a window is placed at the starting point of the original sequence, and a specific window size is selected from the set window size range. Then, starting from the current window, the sliding window is used to sequentially capture subsequences until the end point. Finally, each captured subsequence is treated as an independent sample and used to train the paper drone motion control model, thereby completing the data augmentation of the motion control training set.

B.POSE ESTIMATION AND MOTION CONTROL BASED ON VbPET

On the basis of data augmentation, a detailed study to VbPET is conducted, and the pose estimation and motion control in paper drone design are completed based on VbPET. The VbPET proposed in the study selected a monocular depth estimation network based on Laplacian and residual structures as the backbone network. On this basis, ACMix self-attention mechanism and SPP are added to the feature extraction network to enhance the scale information of features and enhance feature diversity. The application of ACMix self-attention mechanism in VbPET feature extraction network is shown in Fig. 3.

Fig. 3. ACMix self-attention mechanism in feature extraction network.

From Fig. 3, the first step is to use a monocular depth estimation network to process the RGB images captured by the drone camera. It obtains an RGBD image that combines the RGB image and depth estimation results. “D” represents depth information, which can provide three-dimensional position information of objects in the scene. Subsequently, residual networks are used to extract deep features of the image. ACMix combines convolutional networks and self-attention mechanisms to study the use of ACMix to capture long-distance dependencies between different regions in the initially obtained feature images, resulting in new multidimensional feature images. However, if the new multidimensional feature map is directly flattened into a one-dimensional vector input into the regression network, some important information in the spatial structure that affects the pose estimation of paper drones will be ignored due to the inability of one-dimensional vectors to preserve the spatial relationships and scale information in the original feature map [23,24]. Therefore, the study combines SPP to optimize the feature extraction network, as shown in Fig. 4.

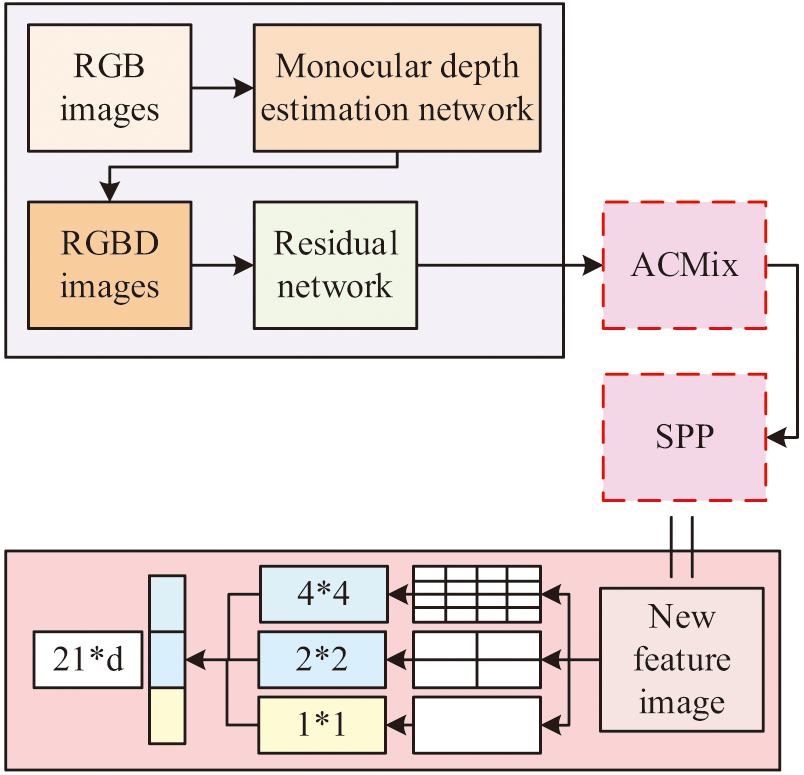

Fig. 4. Feature extraction network after SPP optimization.

From Fig. 4, SPP performs pooling operations on the new multidimensional feature maps obtained using ACMix. Specifically, the study sets SPP to use pooling kernels of 4 * 4, 2 * 2, and 1 * 1 to capture spatial feature information at different scales, divide the feature maps into multiple subregions, and perform average pooling operations on each subregion. Finally, the pooling results of three different scales are concatenated to form a multi-scale feature vector of (16+4+1) * Channel, achieving feature diversity.

According to equation (4), when estimating the pose of a paper drone based on image features, the final target to be obtained is the displacement T of the image and the selection R of the image. If this is considered as a classification task, that is, to preset the drone T and R based on the maximum flight speed and maximum rotation angular velocity of the paper drone, and discretize the preset space to form a finite number of possible states, learning the relationship between input image frames and discretized states will cause the loss of continuous pose and position information of the paper drone, reducing estimation accuracy [25]. Therefore, the research regards pose estimation task as a regression task, which utilizes the features extracted from the optimized VbPET feature extraction network and uses a regressor to predict the T and R of the drone. The paper drone pose estimation network based on VbPET studied and constructed is shown in Fig. 5.

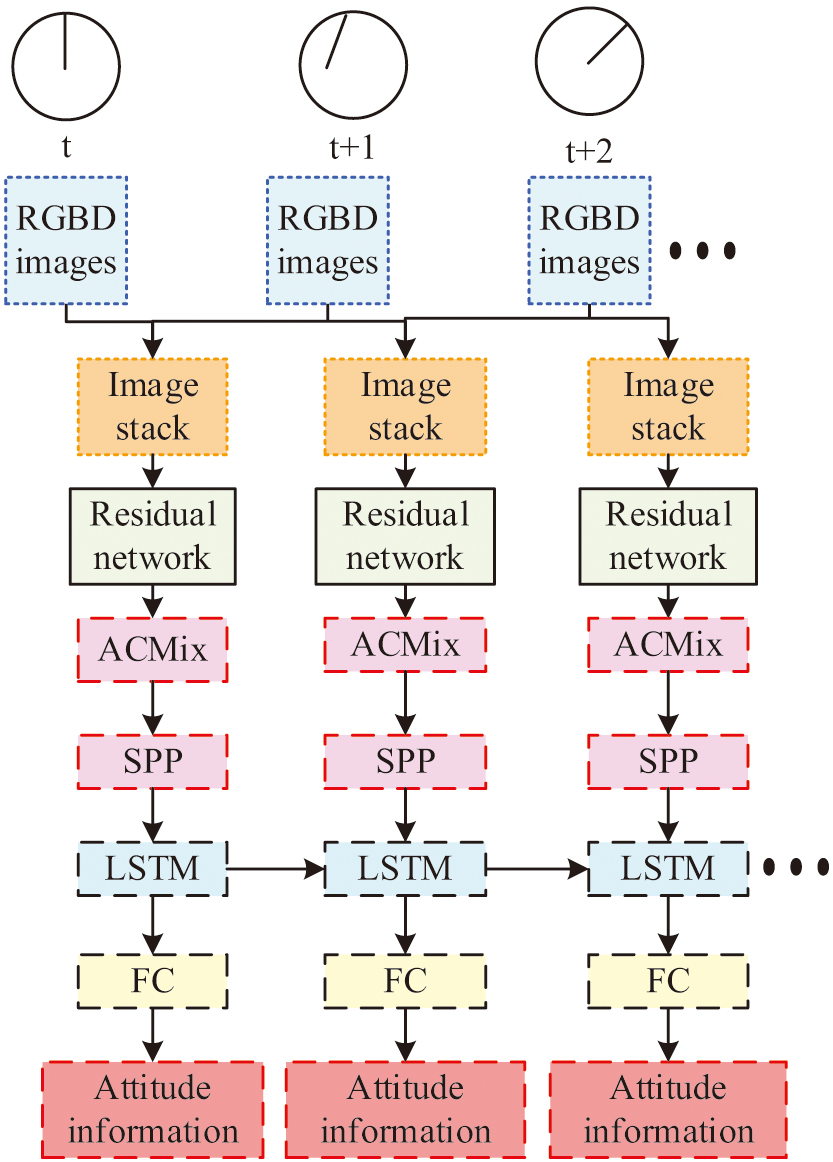

Fig. 5. Pose estimation network based on VbPET.

From Fig. 5, it can be seen that for each pose estimation, two frames of RGBD images at time t and time t+1 are selected, and the two RGBD images are stacked to form new image data, which is then processed through a feature extraction network. It is worth noting that the study incorporated Long Short-Term Memory (LSTM) into the pose network, which serves as a recurrent neural network for processing sequential data and can effectively learn the temporal information of input data. The output of LSTM is processed through a fully connected layer to obtain pose information. After calculating the poses at time t and time t+1, the network will receive the images at time t+1 and time t+2 as new inputs and repeat the above operation to achieve continuous pose estimation of the drone. In the process of pose estimation, traditional methods use Euler angles for estimation, but due to the fact that the universal joint lock can result in multiple different Euler angle representations of the same pose, it does not have uniqueness [26]. Therefore, the study uses quaternions to replace Euler angles, as shown in equation (6):

In equation (6), qx, qy, and qz represent the quaternions corresponding to rotation around the X, Y, and Z axes, respectively. α, β, and γ are Euler angles, representing the roll angle for rotation around the X axis, the pitch angle for rotation around the Y axis, and the yaw angle for rotation around the Z axis. i, j, and k are imaginary units, respectively. Finally, qx, qy, and qz are multiplied in order of rotation to obtain quaternions. Finally, the core idea of constructing a paper drone motion control network based on VbPET is to combine feature data and position data to predict the future flight status of paper drones, as shown in Fig. 6.

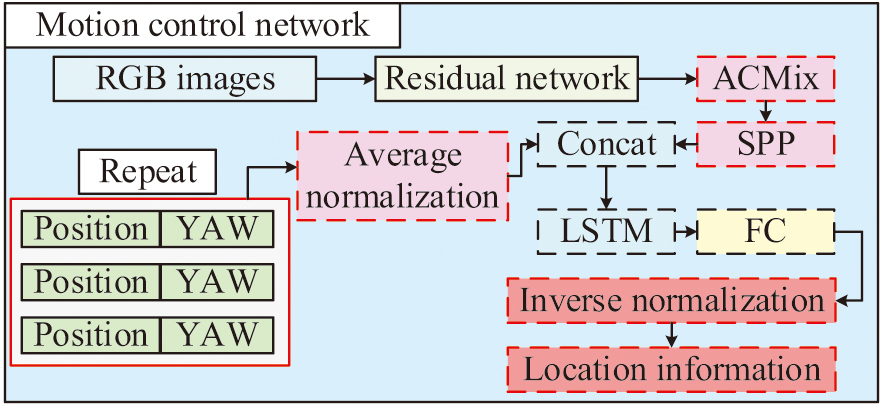

Fig. 6. Motion control network based on VbPET.

As shown in Fig. 6, in the motion control network, the direct combination of position information data and image feature data may cause problems due to their different magnitudes and distributions. Therefore, the study repeats the feature vectors of position information to ensure dimensional compatibility when merging position information and image features. In addition, to maintain the stability of the motion control network, the study also performs average normalization on the input position feature data. Finally, during output, the position and yaw angle data of the paper drone are restored through inverse normalization to obtain real physical quantities, completing prediction and motion control.

A.VALIDATION AND ANALYSIS OF DATA AUGMENTATION METHODS

In order to verify the effectiveness of the proposed MbDA method and the sliding window method, the 7Sense dataset was selected to test the two methods, which included a total of 7 application scenarios. 7Sense, a publicly available annotated dataset widely used in drone research, is shared by the drone researcher and developer community and contains flight image sequences for a variety of environments and conditions, each with a corresponding attitude label. The 7Sense dataset provides sequences of RGBD camera frames from multiple scenes for drone research, each of which is compressed into a zip file containing 500 to 1,000 frames. Each frame consists of an RGB color map, a depth map (in millimeters, invalid depth value is 65535), and a 4×4 homogeneous coordinate matrix for recording camera poses. In addition, each scene is provided with a split file for evaluation and a Truncated Signed Distance Function volume file for frame-to-model alignment, the latter stored in MetaImage format with 512x512x512 voxel resolution. Rafique A. et al. proposed a new framework for robot reality segmentation and conducted experiments on 7Sense, achieving an accuracy of 74.85%, which is better than the comparison method [27]. The experimental software and hardware configuration and parameter settings are shown in Table I.

Table I. Experimental hardware and software configuration

In Table I, the initial learning rate of the research set algorithm was 0.0001, which increased linearly to 0.003 in the first 6 rounds of training. Then, for every 200 rounds of training, the learning rate was halved. During the training process, the study used the original 7Sense dataset for training as a comparative method to explore the differences after training using data augmentation methods on the 7Sense dataset. The result is shown in Fig. 7.

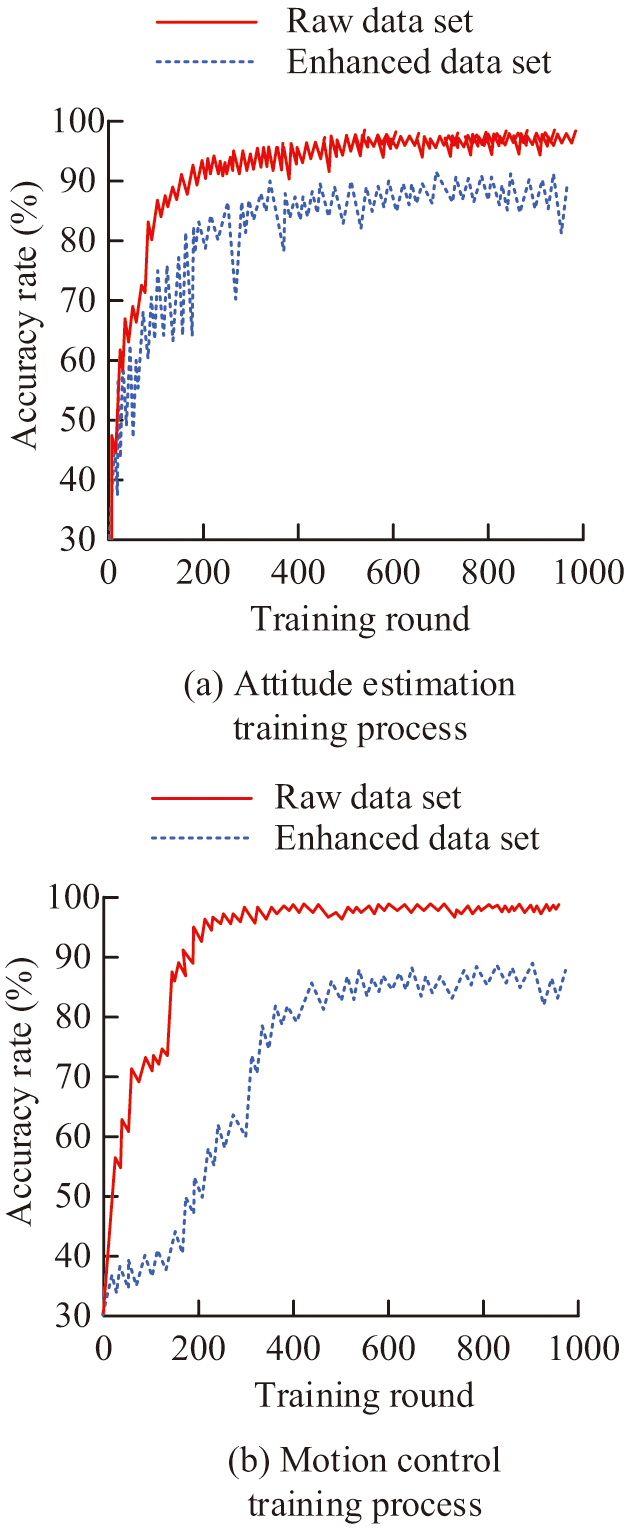

Fig. 7. Experimental results of data enhancement methods.

From Fig. 7(a), for pose estimation, the estimation accuracy for the original dataset was around 90.00% after 1000 training sessions, while the highest estimation accuracy reached 96.31% after using data augmentation methods. As shown in Fig. 7(b), when performing motion control, the accuracy of motion control trained on the dataset using data augmentation methods was also better than the original dataset, with the former reaching 97.81% and the latter only 88.34%. From this, the MbDA method and sliding window method proposed in the study could effectively improve accuracy during the training process. After training, to verify the generalization performance improvement effect of the data augmentation method, the EuRoC MAV dataset, AirSim dataset, and Malaga dataset were selected as the test sets for a total of 100 tests. The results are shown in Fig. 8.

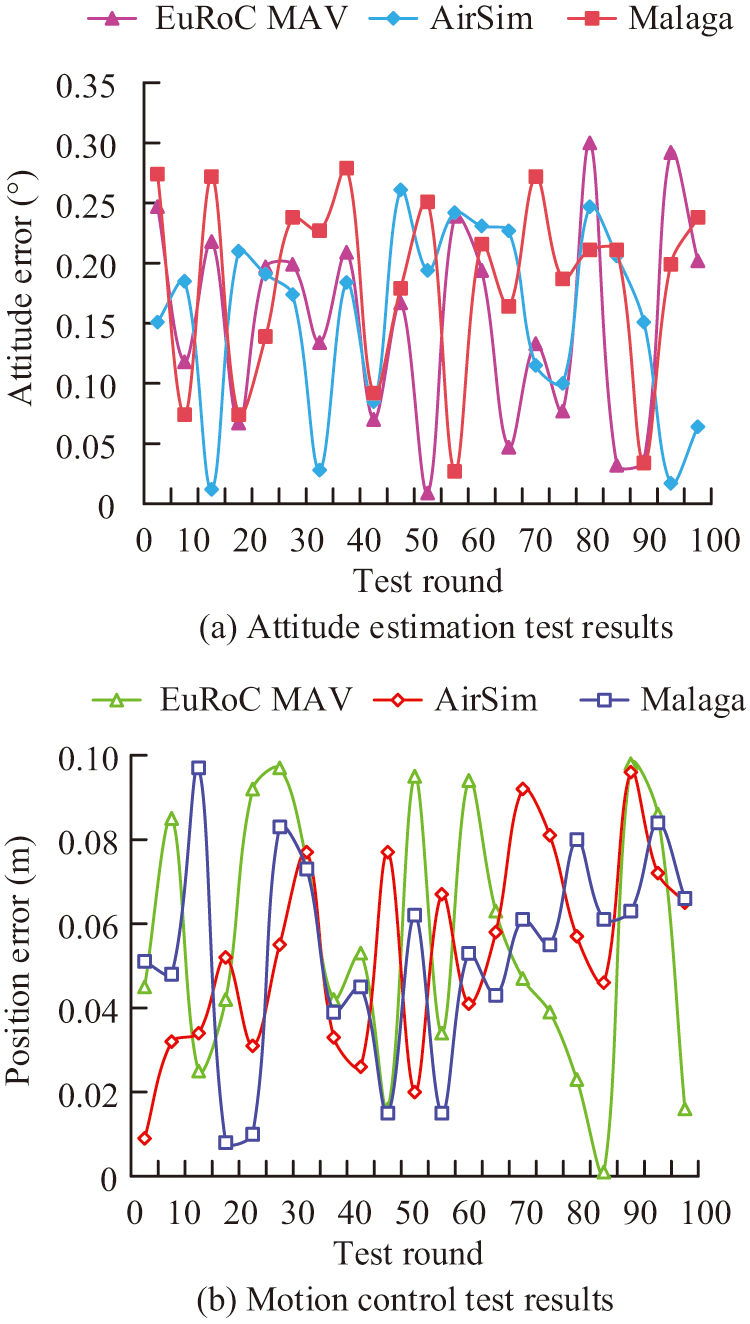

Fig. 8. Test results from different datasets.

According to Fig. 8(a), in the three test sets, the average pose errors of the X, Y, and Z axes did not exceed 0.30 °. Among them, the EuRoC MAV dataset even had an error close to 0 ° in the 53rd test, and the AirSim dataset also had multiple tests approaching 0 °. As shown in Fig. 8(b), in the motion control test, the maximum error occurred during the 12th test on the Malaga dataset, with an average position error of 0.096 m. However, the error in all test results did not exceed 0.100 m. From this, after data augmentation dataset testing, pose estimation and motion control showed good performance in different test sets, with outstanding generalization ability.

B.POSE ESTIMATION AND MOTION CONTROL VERIFICATION ANALYSIS BASED ON VbPET

To verify the effectiveness of the VbPET proposed in the study, ablation experiments were conducted first, with a total of four experimental methods setup. Error rate (E), Precision rate (P), and F1 score (F1) were selected as validation indicators, and the data enhanced 7Sense dataset was used as the test and validation sets. The specific methods and results are shown in Fig. 2.

According to Table II, when using only the backbone network for monocular depth estimation, the E value was 9.46%, the P value was 83.48%, and the F1 was 84.37%. When adding ACMix on the basis of the backbone network without using SPP or adding SPP without using ACMix, the E value decreased and the P value and F1 increased. For method 4, which simultaneously incorporated ACMix and SPP, that is, the VbPET proposed in the study, the E value was reduced to 3.46%, the P value was increased to 97.46%, and the F1 value was increased to 97.53%. This indicated that the addition of ACMix and SPP could improve the performance of the network, and when combined with ACMix and SPP, the performance improvement was the most significant, verifying the effectiveness and superiority of VbPET. On this basis, the effectiveness and superiority of pose estimation based on VbPET were verified using paper drones in real scenarios. Unscented Kalman Filter (UKF) and Deep Visual Odometry (DeepVO) were selected as comparison algorithms, and the results are shown in Fig. 9.

Fig. 9. Comparison of experimental results of pose estimation algorithms.

Table II. Results of ablation experiment

As shown in Fig. 9(a), for VbPET, the average error of roll angle, pitch angle, and yaw angle during a 10-minute flight of a paper drone were 0.07°, 0.18°, and 0.31°, respectively. As shown in Fig. 9(b), for UKF, the average errors in pose estimation for roll angle, pitch angle, and yaw angle were 0.19°, 0.34°, and 0.47°, respectively. As shown in Fig. 9(c), for DeepVO, the average errors in pose estimation for roll angle, pitch angle, and yaw angle were 0.20°, 0.31°, and 0.54°, respectively. From this, pose estimation based on VbPET had the smallest error and the highest accuracy. Finally, the motion control based on VbPET was validated, and UKF and DeepVO were also selected as comparison algorithms. The results are shown in Fig. 10.

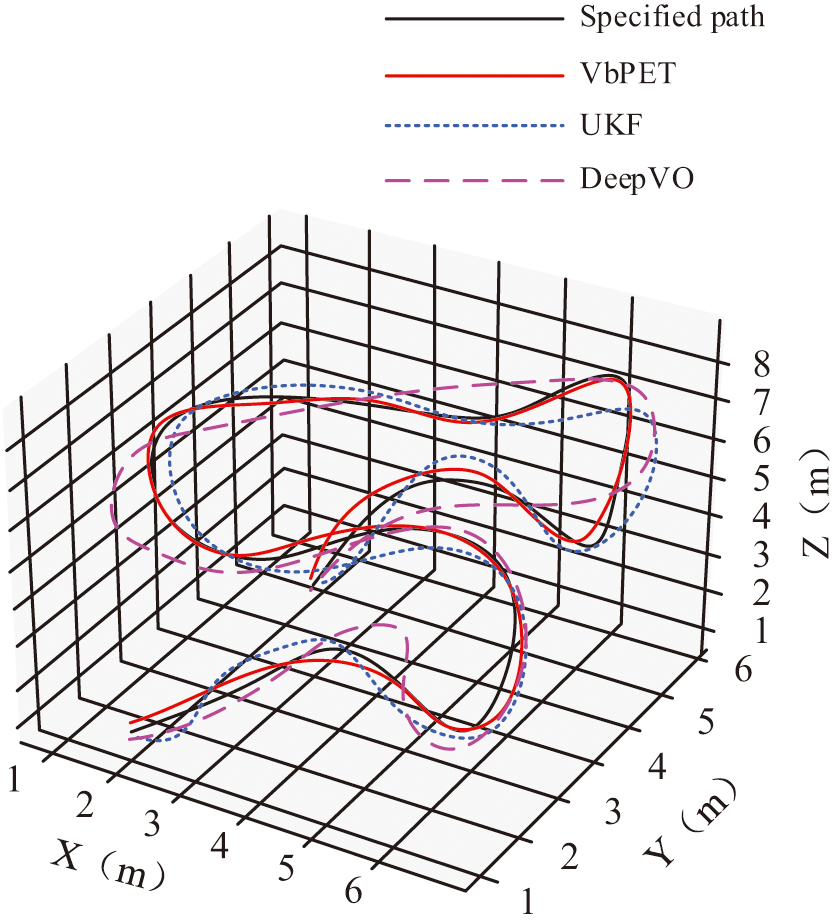

Fig. 10. Results of motion control comparison experiment.

As shown in Fig. 10, under the motion control based on VbPET, the flight path of the paper drone was almost in line with the specified flight path, with only a significant deviation at the end of the path. Both UKF-based motion control and DeepVO-based motion control caused significant deviation in the flight path of paper drones, with DeepVO even showing a deviation of nearly 50 cm. From this, the motion control performance based on VbPET was good, effective, and superior.
