Evaluation of National Music Performance by Integrating Attention Mechanism and Music Theory Rules

A.CONSTRUCTION OF NM PERFORMANCE EVALUATION MODEL BASED ON MUSIC THEORY RULES AND CN-CNN

The appraisal of NM’s performances is crucial to ME, cultural transmission, and artistic advancement since it is a significant component of traditional Chinese culture. Traditional NM performance evaluation mainly relies on the subjective judgment of professional musicians and lacks objective and accurate evaluation standards and methods. Therefore, the study constructs a NM performance evaluation model based on music theory rules. A model that can objectively and accurately evaluate the quality of NM performance is constructed through the combination of music theory rules and deep learning. The basic music theory knowledge covers the core elements of pitch, rhythm, beat, melody, harmony, music notation, terminology, and so on [16]. The twelve equal temperament of pitch and the musical chart are shown in Fig. 1.

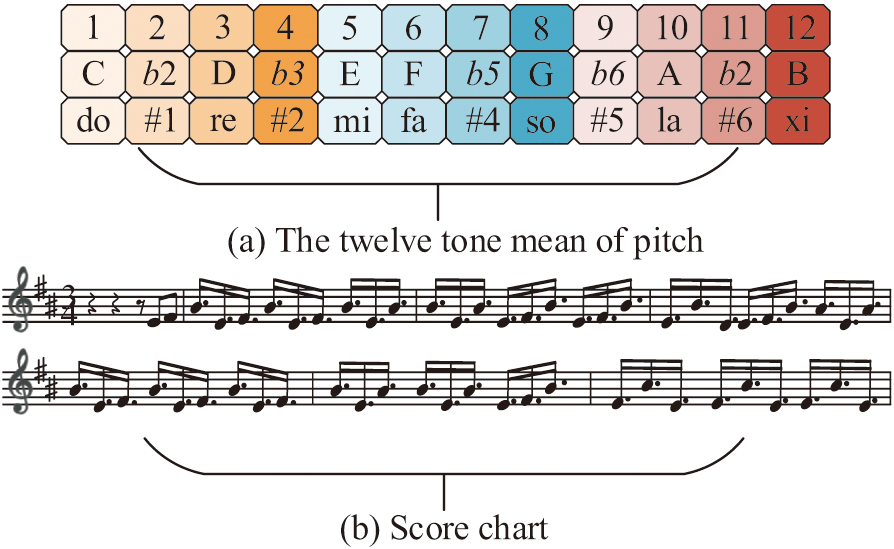

Fig. 1. The 12-tone equal temperament and musical score (Source from: Author’s own drawing) CN-CNN (Source from: Author’s own drawing).

In Fig. 1, pitch is based on the twelve equal temperament laws and consists of whole tones and half tones. Sheet music is the earliest recorded representation of music, and the most common and basic form is the pentatonic score. On this basis, Chinese folk music theory has developed a unique system. It is based on the five tones of Gong, Shang, Jue, Zhi, and Yu and emphasizes the changes of “rhythm,” such as glissando, vibrato, and other decorative techniques. It utilizes special modes such as yanyue and qingshang, forming an elastic structure of “scattered-slow-medium-fast-scattered.” Pitch entropy is the entropy value of the pitch sequence of notes in a section of a track, as shown in equation (1):

In equation (1), Pe denotes pitch entropy. ric denotes the pitch variety recognized by chord c. Equation (2) illustrates the calculation of the rhythmic change stability:

In equation (2), M denotes rhythmic variation stability. H denotes the number of beats. (gi,gi+1) denotes the rhythmic pattern at the time point from i to i+1. XOR denotes the inconsistent unit in the rhythmic pattern. OR denotes an active unit in the rhythmic pattern. Equation (3) displays the equation for chord coherence:

In equation (3), N is the coherence of the chord. c2i is the 2nd element in the ith categorization matrix in the recognition sequence. The chord regularity is shown in equation (4):

In equation (4), R denotes chord regularity. cd2i+n denotes the 2nd classification result in the i^th classification. p denotes chord change probability. To better capture low-level spectral features, such as pitch and rhythm, as well as high-level timbral nuances, the study combines the CN-CNN model with music theory rules. Unlike real-valued CNNs, which only process magnitude information, the CN-CNN model converts audio into a complex form via Fourier transformation, preserving the critical phase relationships that are essential for characterizing ethnic music ornamentations. This enables joint modeling of time-domain transients and frequency-domain structures. Then the audio data are dimensionalized to visualize the recognition and evaluation process [17,18]. The structure of CN-CNN is shown in Fig. 2.

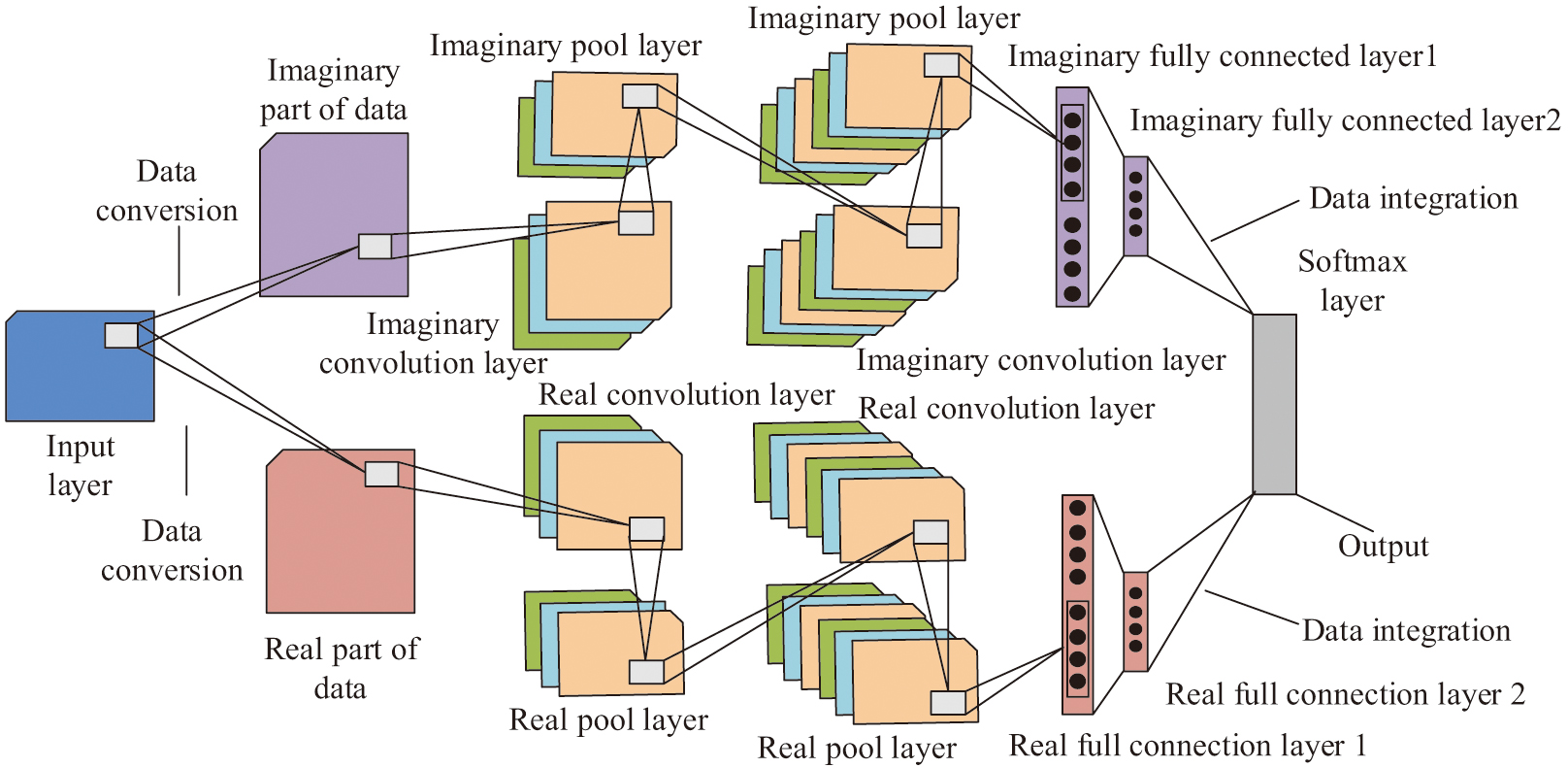

Fig. 2. CN-CNN (Source from: Author’s own drawing).

In Fig. 2, CN-CNN is an extended version of real CNN. Its architecture is the same as that of real CNN, the difference is that the input layer of CN-CNN converts the acquired music and audio signal data into complex form. It also sends its real and imaginary parts to the convolutional layer, pooling layer (PL), and fully connected layer (FCL), respectively. Before the data is passed to the output layer, this data is recombined into real number form. The complex convolution operation extends real convolution to the complex domain enabling three key advantages over real-valued CNNs: phase sensitivity which can accurately models micro-temporal variations (e.g., 0.1s glissando in Pipa), spectral completeness can represent harmonic energy and phase coherence simultaneously, and filter orthogonality real and imaginary kernel functions can learn complementary features. Its execution is done with the help of real number convolution operation [19,20]. When the complex input data (ID) is placed in a complex convolution matrix, the complex convolution calculation is shown in equation (5):

In equation (5), A and B are real vectors in a one-dimensional complex convolution operation. W is the complex convolution kernel, which consists of two real components. h is the complex input signal. x is the real part of the input signal. y is the imaginary part of the input signal. * is the convolution operation. Maximum pooling preserves the maximum local features in the signal feature map (FM). Therefore, maximum value pooling is used in the study [21]. The maximum value pooling calculation is shown in equation (6):

In equation (6), pl(i,t) is the output value of the tth neuron of the ith FM of the l layer after the PL. ∂l(i,t) is the output value of the tth neuron of the ith FM of the l layer after the activation function. The complex convolutional network propagation computation process is shown in equation (7):

In equation (7), α is the learning rate. Wt+1l+1 is the result of the t+1th iteration of the l+1th layer weights. L is the loss function. bt+1l+1 is the l+1th layer bias t+1th iteration result. The flow of NM performance evaluation based on music theory rules and CN-CNN is shown in Fig. 3.

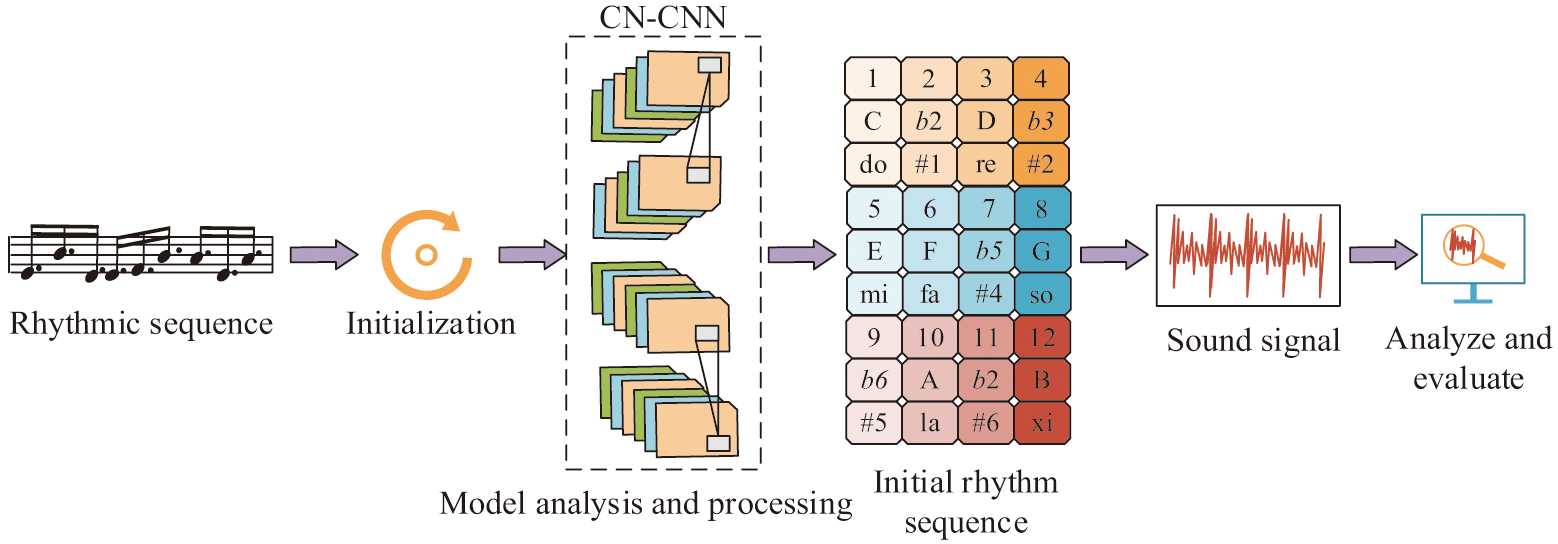

Fig. 3. Evaluation process of ethnic music performance based on music theory rules and CN-CNN (Source from: Author’s own drawing).

In Fig. 3, the study utilizes a large number of musical score and audio signal data samples input into the CN-CNN for continuous training, which makes the CN-CNN have the ability to learn from the samples. After the data samples have been convolved, activated, and pooled, the feature matrix is sent to FCL [22]. The FCL integrates and unfolds all the elements in the FM and subsequently performs recognition and comparison operations. Finally, the spectral features, harmonic structure, dynamic range, rhythmic complexity, and stylistic categorization are evaluated to determine the effectiveness of this NM performance.

B.IMPROVED OPTIMIZATION OF NM PERFORMANCE EVALUATION MODEL INCORPORATING AM

The NM performance evaluation model, which only relies on music theory rules and CN-CNN, is difficult to adapt to the dynamic changes of improvised pitch and rhythm and has a weak perception of time sequence. For example, it is insufficient to perceive the coherence of the “scatter-press-pan” timbre alternation of the Chinese Guqin. To address this issue, an AM is introduced to optimize the weight distribution of temporal features. This enables the model to dynamically focus on key decorative areas, suppress irrelevant background noise, and capture long-term dependencies between elastic rhythmic structures. Therefore, an improved LSTM algorithm is introduced to optimize the NM performance evaluation model. The algorithm optimizes the structure of generator and discriminator and introduces the AM to enhance the FE ability of LSTM. To efficiently learn possible relationships between data points, LSTM, a unique type of recurrent neural network, can handle time-series data and capture dynamic properties in picture sequences [23,24]. Combining the AM with LSTM can make up for the shortcomings of LSTM in long sequence modeling, while retaining its time-series processing capability. The LSTM model incorporating the AM is shown in Fig. 4.

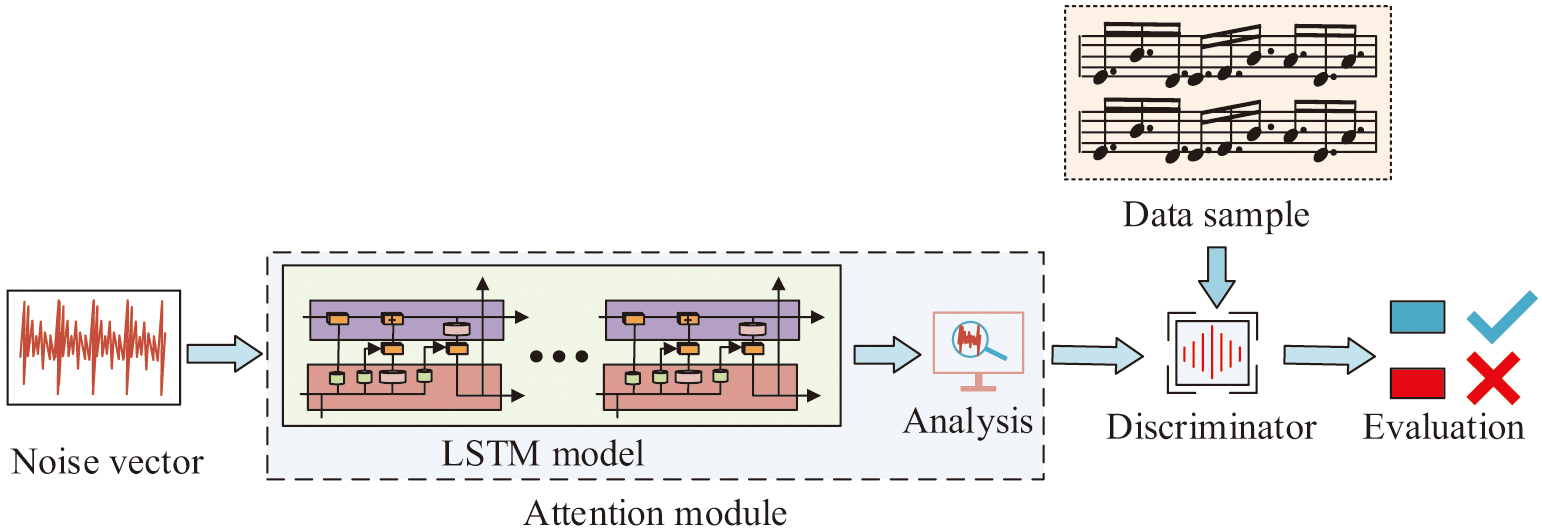

Fig. 4. LSTM model integrating AM (Source from: Author’s own drawing).

In Fig. 4, the structure of composite LSTM model mainly consists of generator, LSTM model, and judgment. Combined with the AM, the generator and LSTM model can be constructed as an attention module. The generator receives noise vectors as input and contains multiple LSTM units inside for processing time-series data and generating evaluation data. LSTM achieves effective retention of long-term memory by incorporating hidden states (HSs) and long-term states in the hidden layer. The output data samples of the generator are passed to the discriminator for analysis. The discriminator outputs the judgment result, which represents the evaluation result of the music. The forgetting gate (FG) output in LSTM is shown in equation (8):

In equation (8), bf is the bias term (BT) of the FG. Wf is the weight matrix of the FG. xt is the ID of the current moment (CM). ht−1 is the HS of the previous moment. The candidate states C˜t are filtered and created using the activation function tanh, respectively. Among them, C˜t is calculated as shown in equation (9):

With the input layer, the previous state is updated to Ct, as shown in equation (10):

In equation (10), Ct˜·it is the proportion of new information added through the input gate control. ft·Ct−1 is the percentage of retention of historical information controlled through the FG. The output gate output Ot and final output ht are calculated as shown in equation (11):

In equation (11), Ct is the updated state of the memory cell at the CM. ht is the HS at the CM. LSTM first performs FE on the timing data and outputs the HS. After LSTM outputs the HS, the AM assigns different weights to the HS and finally focuses on the key information. The technical synergy between LSTM and AM can be summarized as follows: LSTM processes sequential dependencies via gate mechanisms, thereby maintaining long-term memory of the musical context. Attention re-weights HSs to amplify salient features and suppress less relevant information. The weighted feature vector output feeds into subsequent evaluation layers, enabling the model to make decisions based on the most informative parts of the sequence.

AM is a computational method that simulates the allocation of human cognitive resources. It accomplishes this by dynamically giving certain ID components varying weights. This enables the model to concentrate on important data. Its central concept is “selective attention,” which has extensive use in computer vision, multimodal tasks, and natural language processing. The attention score is calculated as shown in equation (12):

In equation (12), Wa and Ua are trainable weight matrices. vT is the attention weight (AW) vector. st−1 is the previous moment vector. ba is the BT. The AWs are normalized as shown in equation (13):

In equation (13), et is the un-normalized attention score. T is the input sequence length. ek is the attention score from 1 to T. The final output of the attention update is shown in equation (14):

In equation (14), st means the HS of the LSTM. xt means the current input vector. ct is the vector providing global key information. To more closely match the reality in daily life, an audio source separation module is added at the beginning of the evaluation. This module can extract the accompaniment from the audio for subsequent work. The audio preprocessing process is shown in Fig. 5.

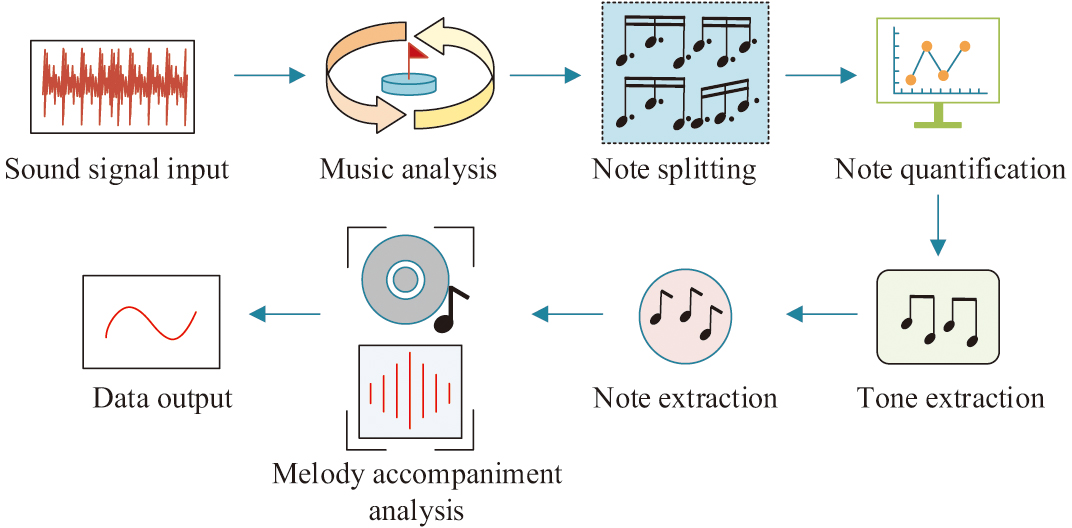

Fig. 5. Audio preprocessing process (Source from: Author’s own drawing).

In Fig. 5, the complex audio signal is first decomposed into a sequence of note rhythms. It is then decomposed into individual note rhythms by quantization. Finally, smooth and easily parsable audio signals are generated by combining the accompaniment [25]. The evaluation model incorporating the AM, LSTM, music theory rules, and CN-CNN is shown in Fig. 6.

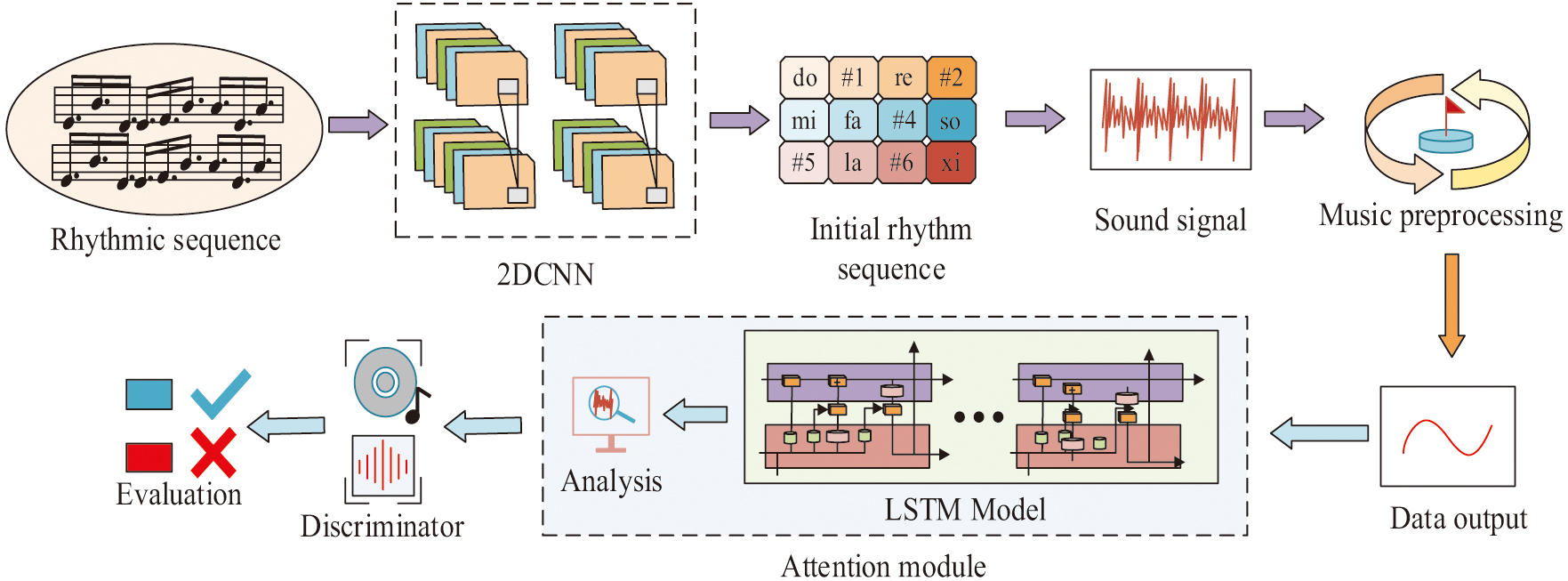

Fig. 6. Evaluation model integrating AM and 2D CN-CNN (Source from: Author’s own drawing).

In Fig. 6, first, the performed music is subjected to CN-CNN for efficient FE to capture the characteristics and styles of different NM. The CN-CNN model converts audio into complex spectrograms, where the imaginary component explicitly encodes the critical phase relationships necessary for ornamentation analysis. This provides richer input features than real-valued spectrograms for subsequent LSTM processing. Then the music time-series relationship is established by a composite LSTM model incorporating the AM. The long-term feature dependencies in audio are processed to fully understand the bar-to-bar connections of music segments, thus improving the accuracy of NM analysis and evaluation. Finally, by evaluating the intervals between adjacent notes in the music as a whole, the degree of conformity to the compositional rules, the degree of matching between different instruments, the overall pitch degree of the music, and the degree of similarity between the style of the music and the style of the dataset, it is judged to analyze whether the NM performance is accurate and complete and moving.

A.PERFORMANCE TESTING OF A NM PERFORMANCE EVALUATION MODEL INCORPORATING AMS AND MUSIC THEORY RULES

To examine the performance of NM performance evaluation model, the study uses Ubuntu 20.04 system and PyTorch as a framework for deep learning. Combining a high-performance computing server with NVIDIA RTX 3090 GPUs and an experimental platform with Intel Core i9-12900K CPUs, the open-source music software national song dataset is selected for performance testing. The study refers to the NM performance evaluation model built as CN-CNN-LSTM in an attempt to validate its performance. Its training loss curve with LSTM and artificial neural network (ANN) on the open-source music software national song dataset is shown in Fig. 7.

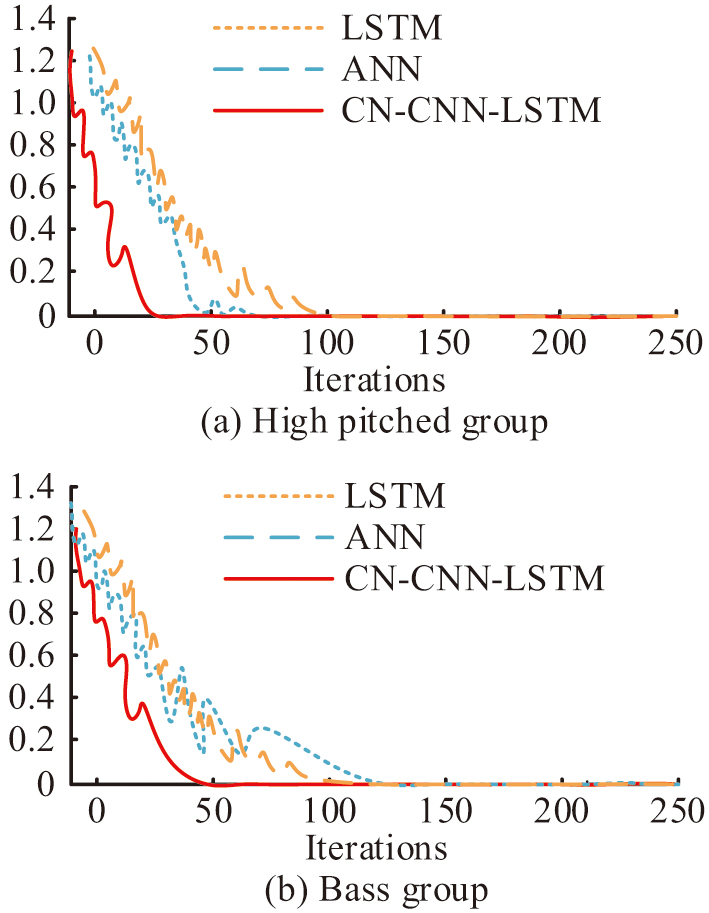

Fig. 7. Method training loss testing (Source from: Author’s own drawing).

In Fig. 7(a), the initial loss value of LSTM reaches 1.22 when it is trained in treble music. The loss value decreases to a position close to 0 and remains basically stable when the number of iterations reaches 100. When ANN is trained in treble music, the initial loss value reaches 1.21. The loss value decreases to a position close to 0 and remains basically stable when the number of iterations reaches 60. CN-CNN-LSTM has an initial loss value of 1.21 when trained in treble music. The loss value decreases to a position close to 0 when the iteration reaches 25 and remains largely stable. In Fig. 7(b), the initial loss value reaches 1.35 when the LSTM is trained in bass music. The loss value drops to a position close to 0 and remains largely stable when the iteration reaches 100. The ANN reaches an initial loss value of 1.36 when trained on bass music. The loss value decreases to a position close to 0 and remains essentially stable when the number of iterations reaches 125. When CN-CNN-LSTM is trained on bass music, the initial loss value is 1.22. The loss value decreases to the position close to 0 and basically stays stable when the number of iterations reaches 50 times. It shows that the research method is faster training efficiency and the training process is more stable. The convergence performance of different methods is compared, as shown in Fig. 8.

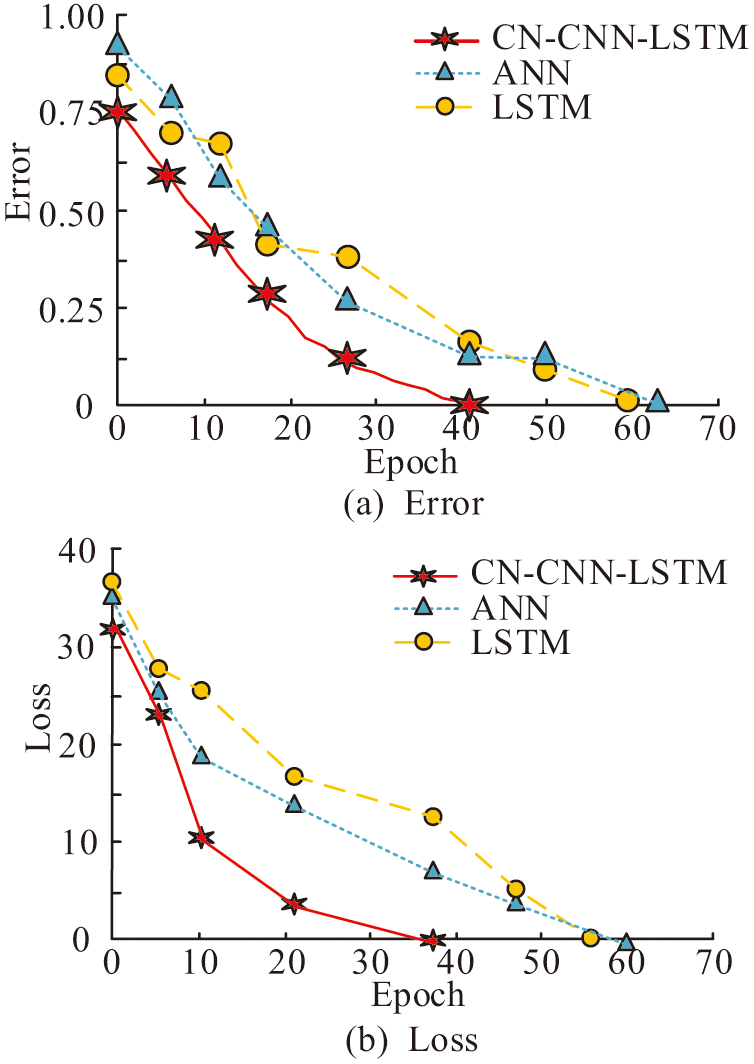

Fig. 8. Convergence performance test (Source from: Author’s own drawing).

In Fig. 8, the overall trend of the performance convergence of different methods when performing training is consistent. In Fig. 8(a), the error value of CN-CNN-LSTM decreases rapidly during the error convergence process and has converged to 0 at the 40th iteration. ANN also shows a gradual decreasing trend during the error convergence process and has converged to 0 at the 62nd iteration. LSTM converges to 0 at the 60th iteration during the error convergence process. In Fig. 8(b), during the loss convergence process, the error value of CN-CNN-LSTM at the beginning iteration is 31, which is lower than that of ANN and LSTM. The decreasing trend of the loss value of CN-CNN-LSTM shows a rapid decrease in the early stage. Its later stages gradually slow down the decline until the completion of training. Compared to ANN and LSTM, CN-CNN-LSTM clearly has better convergence performance and high training efficiency. The confidence interval of loss convergence for CN-CNN-LSTM model training is shown in Table I.

Table I. Confidence interval for training loss convergence

As shown in Table I, during high-frequency training, the initial iteration loss averaged 1.21 with a 95% confidence interval of [1.18, 1.24] and a width of 0.06, indicating stable model initialization. After 25 iterations, the average loss dropped to 0.12, with an interval of [0.10, 0.14] and a width of 0.04. This shows no overlap with the ANN/LSTM, both of which have average losses above 0.30. This demonstrates significantly faster convergence. After 50 iterations, the loss averages 0.03, with an interval of [0.02, 0.04] and a width of 0.02. This indicates increasingly stable training. The low-frequency training exhibits consistent results: an initial iteration loss averages 1.22 with [1.19, 1.25] and 0.06, matching high-frequency training closely. After 50 iterations, the loss averages 0.05 with [0.04, 0.06] and 0.02, far below ANN/LSTM’s contemporaneous values (above 0.15), highlighting strong adaptability to low-frequency features. At 100 iterations, the loss averages 0.02 with [0.01, 0.03], stabilizing near zero without fluctuations. The study compares the change in performance by gradually adding improved modules. The baseline model uses the original CN-CNN. +Music theory rules indicate the addition of music theory rules training. +Composite LSTM module denotes an LSTM module using multiple LSTM units. +AM denotes the introduction of AM. Finally, the full model integrates all the improved modules to evaluate the overall performance improvement. First, the CNN backbone processes raw audio signals and extracts fundamental acoustic features. Then, music theory rules provide domain-specific constraints that guide feature learning and align it with the inherent patterns of ethnic music. A composite LSTM module then models dynamic temporal dependencies in musical signals. Finally, the AM optimizes HS outputs by dynamically focusing on key elements, such as ornaments and glissandos, while capturing long-range dependencies in flexible rhythmic structures. This addresses LSTM’s limitations in capturing dynamic pitch/rhythm variations during improvisation. This sequence ensures effective FE and domain knowledge integration. It also models temporal relationships and ultimately enables AM to prioritize critical information. Table II displays the evaluation findings.

Table II. Results of ablation experiment

Table I shows the performance of different algorithms in terms of accuracy, F1 score, and reasoning time. The CN-CNN baseline model has an accuracy of 90.83%, an F1 score of 0.90, and an inference time of 1.98 s. After adding the lexicographic rules, the accuracy improves to 91.17%, but the F1 score decreases slightly. After the introduction of the composite LSTM module, the accuracy increases significantly to 93.28%, and the F1 score remains at 0.90. After the addition of the AM, the accuracy increases significantly to 96.53%. The F1 score increases to 0.91, and the inference time is reduced to 1.68 s. Finally, the complete model integrates all the improved modules with 98.01% accuracy, 0.92 F1 score, and 1.65 s inference time. The results show that adding improvement modules step by step can effectively improve the model performance. The complete model performs optimally in terms of accuracy, F1 score, and inference time.

To evaluate the generalization capability and comparative advantages of CN-CNN-LSTM, a supplementary experiment is conducted using the widely used, general music classification benchmark dataset, the GTZAN Genre Collection. This dataset contains 1,000 audio clips that evenly cover 10 music genres, providing a standardized validation benchmark for music classification tasks and performance evaluation. The performance comparison results of different methods are shown in Table III.

Table III. Experimental results of performance comparison

As shown in Table III, the CN-CNN-LSTM algorithm achieves an accuracy rate of 95.6% with an F1 score of 0.94. The ANN model recorded 89.3% accuracy and an F1 score of 0.88, while the LSTM model demonstrates 87.1% accuracy and an F1 score of 0.85. The results indicate that the CN-CNN-LSTM model outperforms the other two algorithms in terms of performance, demonstrating superior accuracy and practical applicability. To validate the model’s advancement further, the state-of-the-art audio spectrum transformer (AST) model is selected from the field of music analysis as a benchmark. The AST model demonstrates accurate classification capabilities across multiple audio categories by processing mel frequency spectra through end-to-end processing. All experiments are conducted on the same GTZAN dataset and hardware environment, with results presented in Table IV.

Table IV. Performance comparison with AST model

As shown in Table IV, the CN-CNN-LSTM achieves an accuracy rate of 95.6%, representing a 1.4% improvement over the AST model’s 94.2%. In terms of F1 score, the proposed model reaches 0.94, slightly higher than the AST model’s 0.93 with a 0.01 improvement. In terms of inference time, the CN-CNN-LSTM is much faster, requiring only 1.65 s–21.4% less time than the AST model’s 2.10 seconds. Additionally, the proposed model’s parameter size is 28.5M, significantly lower than the AST model’s 86.3M (67% reduction). These results demonstrate the proposed model’s excellent performance and efficiency, showcasing its ability to maintain high accuracy while achieving faster inference speeds and reduced parameter size.

B.PRACTICAL APPLICATION OF THE NM PERFORMANCE EVALUATION MODEL

To verify the effectiveness of the NM performance evaluation model designed by the study in practical applications, the study takes Jasmine Flower composed by Liu Tianhua and The Moon Over a Fountain composed by Xian Xinghai from the open-source music software as the research objects. CN-CNN-LSTM, ANN, and LSTM are selected for comparison and 50 cycles are played. The obtained music melody recognition rate is shown in Fig. 9.

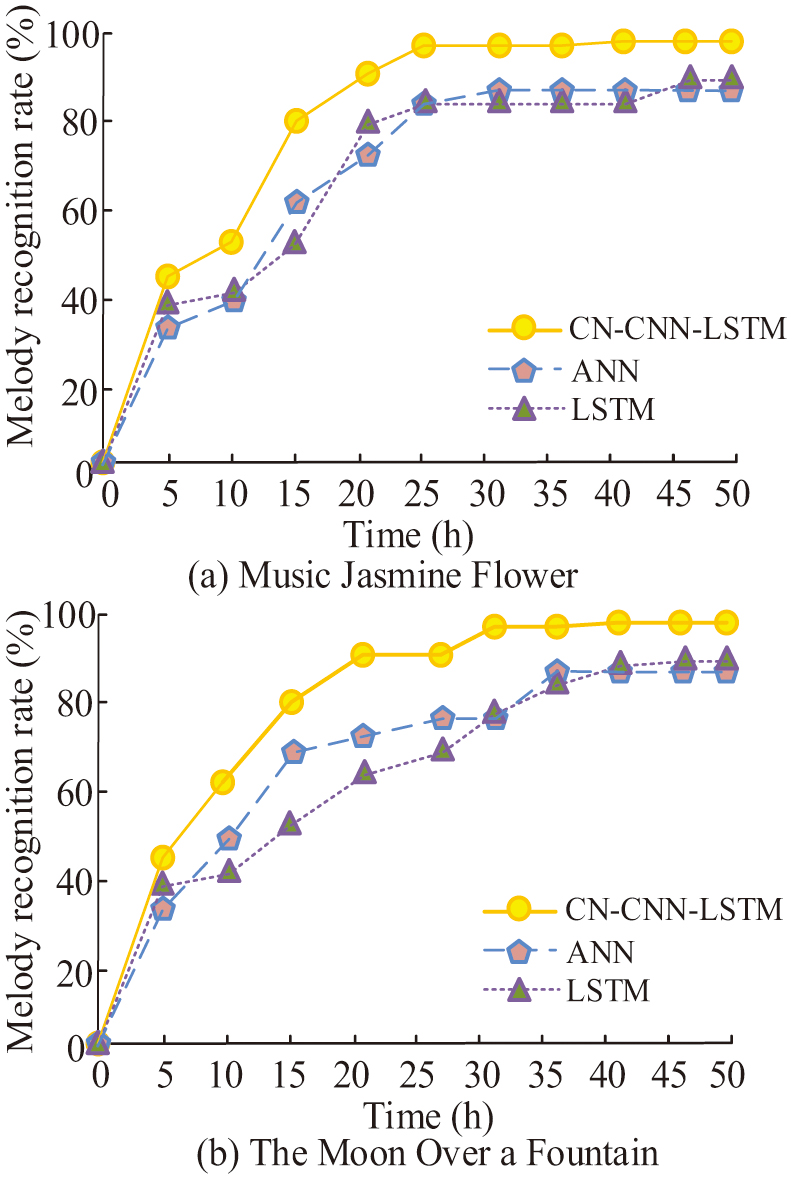

Fig. 9. Music melody recognition rate (Source from: Author’s own drawing).

Figure 9(a) and (b) show the results of music melody recognition for Jasmine Flower and The Moon Over a Fountain, respectively. In Fig. 9(a), the recognition accuracy (RA) of CN-CNN-LSTM increases gradually with the number of cycles. It reaches the highest RA of 99.87% after the 35th time and stabilizes. Additionally, ANN exhibits a steady rise in RA as the number of cycles increases. After the 30th time, it reaches the highest RA of 89.96% and stabilizes. The RA of LSTM increases gradually as the number of loops increases. However, the RA fluctuates from the 25th to the 40th loop playback. The highest RA of 91.03% is reached after 50 cycles of playback. This result shows that the evaluation model designed in the study performs best in practical applications and has high feasibility and effectiveness. To further validate the feasibility of the evaluation model, the study compares the professional ear and intelligent model for the melodic harmony of the entire songs of Jasmine Flower and The Moon Over a Fountain, as shown in Fig. 10.

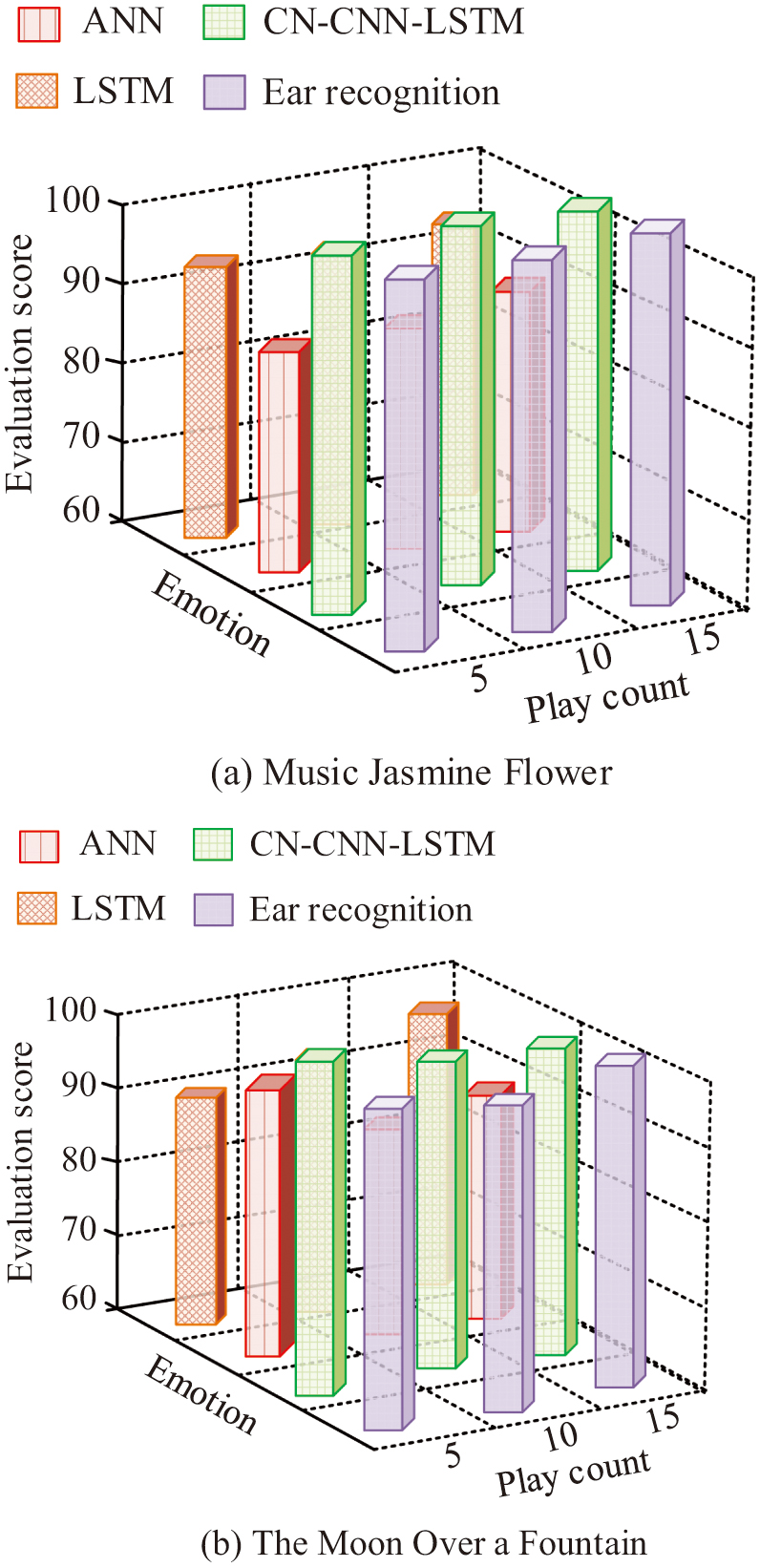

Fig. 10. Comparison of evaluation between professional ear and intelligent models (Source from: Author’s own drawing).

Figure 10 shows a comparison of the results of the professional human ear music performance measure and the intelligent model performance measure for the melodic harmony of the songs Jasmine Flower and The Moon Over a Fountain. In Fig. 10(a), the research design model evaluation effect approximates that of the professionals’ human ear measurements. As the number of times Jasmine Flower is played increases, there are fluctuations in the evaluation scores. It shows that the research design model can have a better effect on recognizing the subtle dissonance in the music as the number of playbacks increases. The fluctuation of ANN and LSTM for the melodic harmony evaluation of Jasmine Flower is large, which indicates that the effect of recognizing the melodic harmony of the music is poor. In Fig. 10(b), the evaluation effect of the research design model is also similar to that of the professional human ear. As the number of times of The Moon Over a Fountain playback increases, there are fluctuations in the evaluation scores. The melodic harmony evaluation of ANN and LSTM for The Moon Over a Fountain fluctuates greatly, indicating that it is less effective in recognizing the melodic harmony of the music. The comparison shows that the melodic harmony of Jasmine Flower is slightly better than that of The Moon Over a Fountain. Disco, classical, jazz, pop, rock, and ethnic music are selected as the categorical labels for the study. JasmineFlower and The Moon Over a Fountain are played in a loop for 100 times. The music genre categorization of the playback results by the research model is made into a confusion matrix, as shown in Fig. 11.

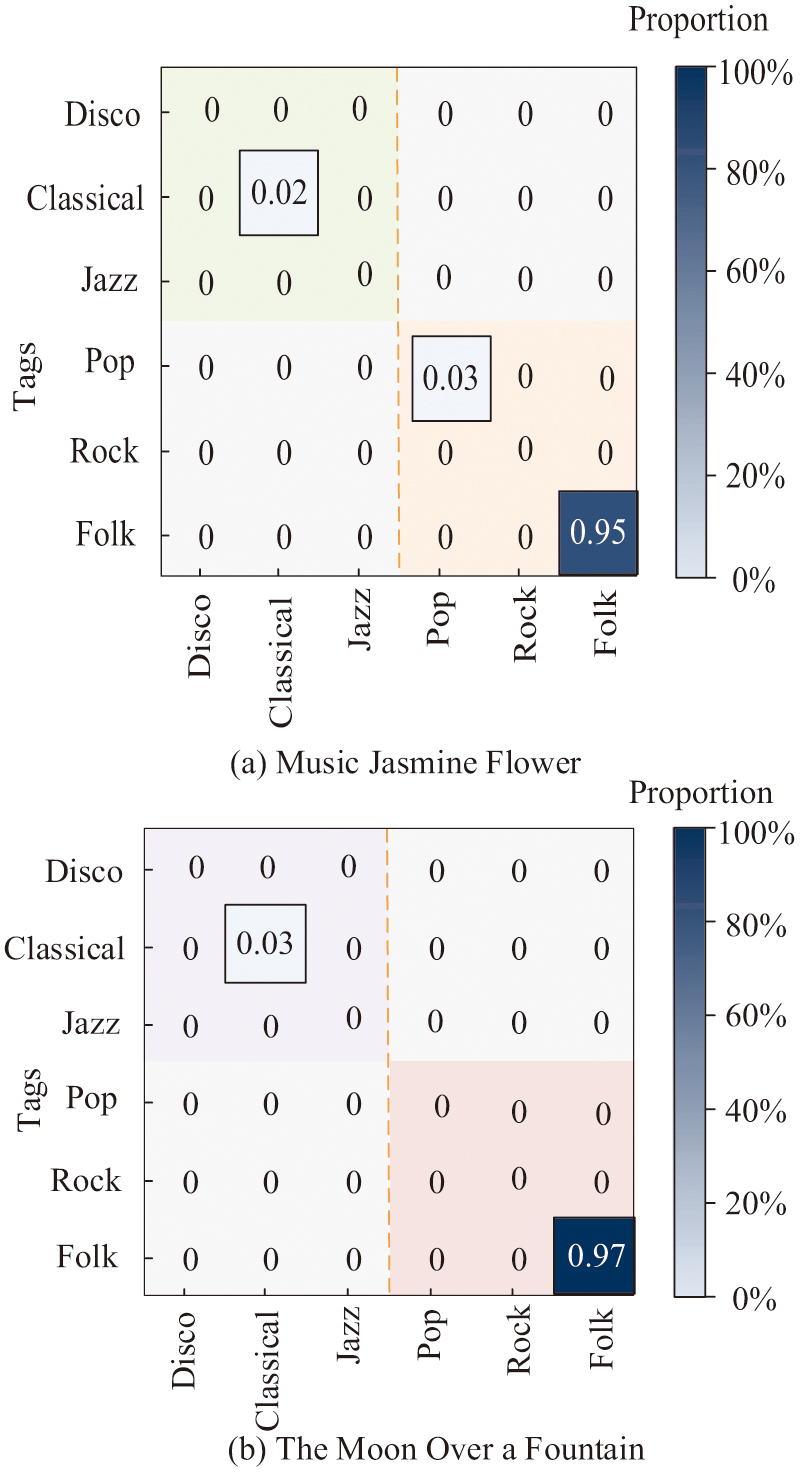

Fig. 11. Ability to classify music genres (Source from: Author’s own drawing).

In Fig. 11(a), the research model is classified into the correct NM 95 times when classifying Jasmine Flower in the music genre. Only 2 times are classified into classical music genre and 3 times are classified into popular music. In Fig. 11(b), when the research model classifies The Moon Over a Fountain into music genre, 97 times are classified into the correct NM. Only 3 times are classified into classical music genre. It demonstrates that the study model can more precisely extract certain musical features for classification assessment and has a high accuracy rate for classifying musical genres. To further evaluate the applicability of CN-CNN-LSTM to ethnic music styles across different countries, this study selects two distinctive independent datasets for testing. The Indian Classical Music (ICM) segment set contains 50 sitar and tabla performances from various ragas. These performances highlight microtones (shruti), intricate ornaments (gamaka), and cyclical rhythms (tala). The Turkish Maqam Music Segment Set (TMM) features 50 oud and kanun performances based on different maqams. These performances emphasize unique scale structures, including augmented second intervals, as well as improvisational passages (taksim) and flexible rhythms. The accuracy of melody recognition of different methods on these ethnic music test sets is shown in Table V.

Table V. Melody recognition accuracy of different methods on these ethnic music test sets

As shown in Table V, the CN-CNN-LSTM model achieved an accuracy rate of 98.54% on the Chinese folk music dataset. This surpasses the accuracy rates of both the ANN model (90.50%) and the LSTM model (91.78%). On the ICM dataset, it scores 85.32, outperforming ANN (72.18%) and LSTM (68.95%). For the TMM dataset, the model scores 82.17, while ANN (65.43%) and LSTM (70.21%) show lower performance. Overall, the CN-CNN-LSTM outperforms both ANN and LSTM across all datasets, demonstrating superior performance. The reduced accuracy on ICM and TMM datasets compares to its outstanding performance in Chinese folk music stems from differences in musical scales between systems. The unique intervals in ICM and TMM differ significantly from those in the 12-tone equal temperament and the pentatonic scale of Chinese folk music. This makes direct adaptation challenging. Additionally, the rhythm structures differ from the elastic rhythms characteristic of Chinese folk music, limiting the model’s generalization ability. Accuracy of feature matching is also reduced by variations in ornamentation styles, such as glissando and vibrato.
